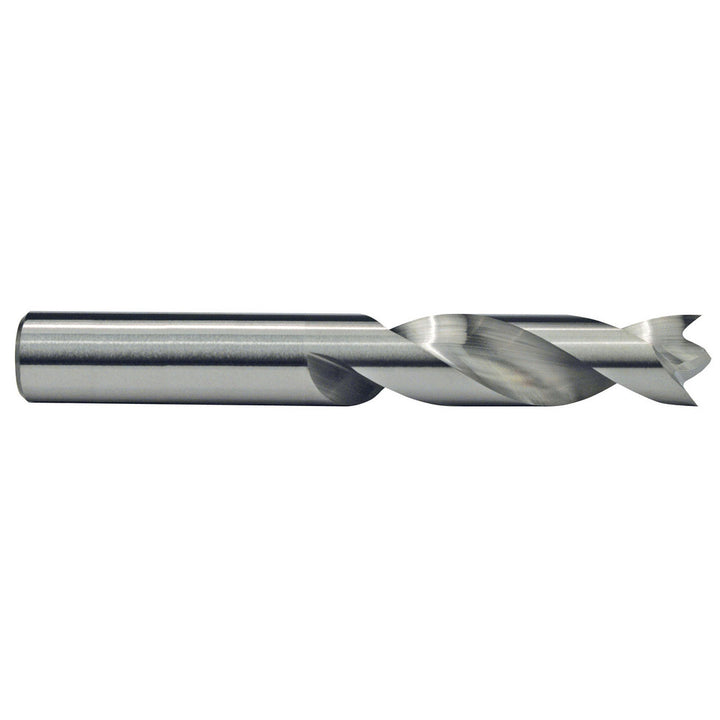

#39 Solid Carbide Screw Machine Drill Bit - M.A. Ford. 20709950

M.A. Ford.

#39 Solid Carbide Screw Machine Drill Bit - M.A. Ford. 20709950

MFR# 20709950Series 207

$24.91List $31.94 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The M.A. Ford. 20709950 is a #39 Solid Carbide Screw Machine drill bit. Suited for non-ferrous metal. 1/2 flute length, 13/16 overall length. Series 207.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size0.0995
Drill bit size range0.0000 to 0.1000
Drill bit size wire#39
Drill length typeScrew Machine
Flute by diameter ratio3xD
Flute length in1/2
Flute typeSpiral
Number of flutes2
Number of margins1
Overall length in13/16
Point typeBrad
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.0995
Shank length in1-5/16
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
