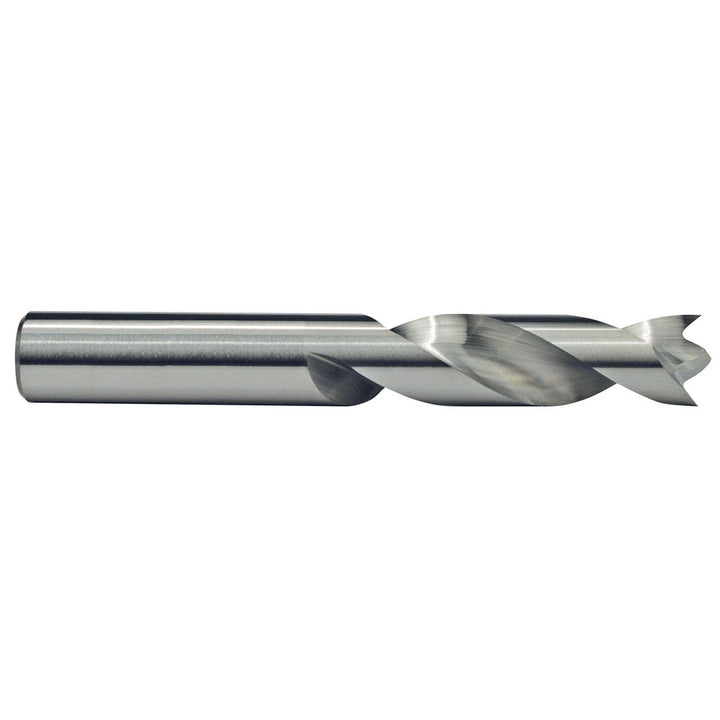

1/8" Solid Carbide Screw Machine Drill Bit - M.A. Ford. 20712500

M.A. Ford.

1/8" Solid Carbide Screw Machine Drill Bit - M.A. Ford. 20712500

MFR# 20712500Series 207

$26.83List $34.41 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/8
Flutes2

Description

The M.A. Ford. 20712500 is a 1/8" Solid Carbide Screw Machine drill bit. Suited for non-ferrous metal. 5/8 flute length, 1-7/8 overall length. Series 207.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in1/8
Drill bit size range0.1000 to 0.1500
Drill length typeScrew Machine
Flute by diameter ratio3xD
Flute length in5/8
Flute typeSpiral
Number of flutes2
Overall length in1-7/8
Point typeStandard
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.1250
Shank length in1-1/4
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
