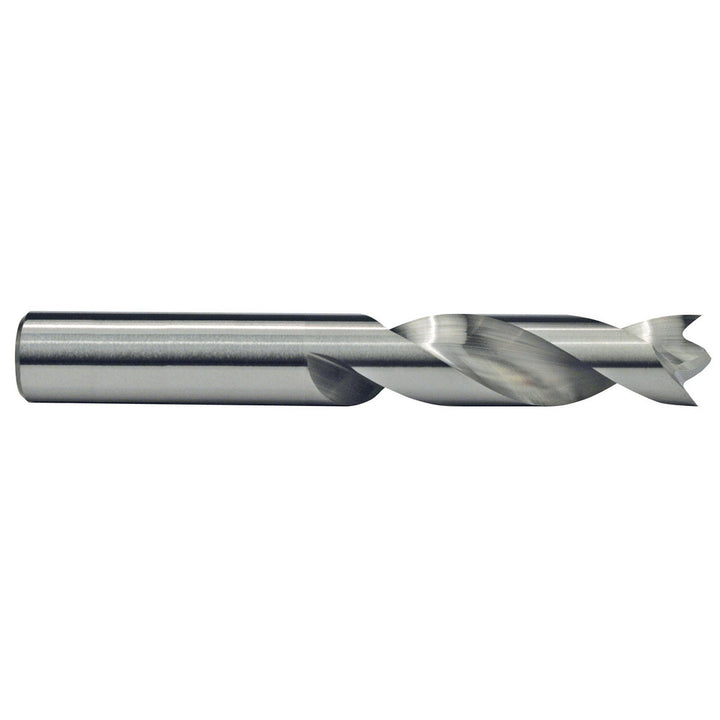

5/16" Solid Carbide Screw Machine Drill Bit - M.A. Ford. 20731250

M.A. Ford.

5/16" Solid Carbide Screw Machine Drill Bit - M.A. Ford. 20731250

MFR# 20731250Series 207

$88.06List $112.94 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size5/16
Flutes2

Description

The M.A. Ford. 20731250 is a 5/16" Solid Carbide Screw Machine drill bit. Suited for non-ferrous metal. 1-1/2 flute length, 2-13/16 overall length. Series 207.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in5/16
Drill bit size range0.3000 to 0.3500
Drill length typeScrew Machine
Flute by diameter ratio3xD
Flute length in1-1/2
Flute typeSpiral
Number of flutes2
Overall length in2-13/16
Point typeStandard
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.3125
Shank typeStraight-Cylindrical
Spiral typeFast
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
