M.A. Ford.

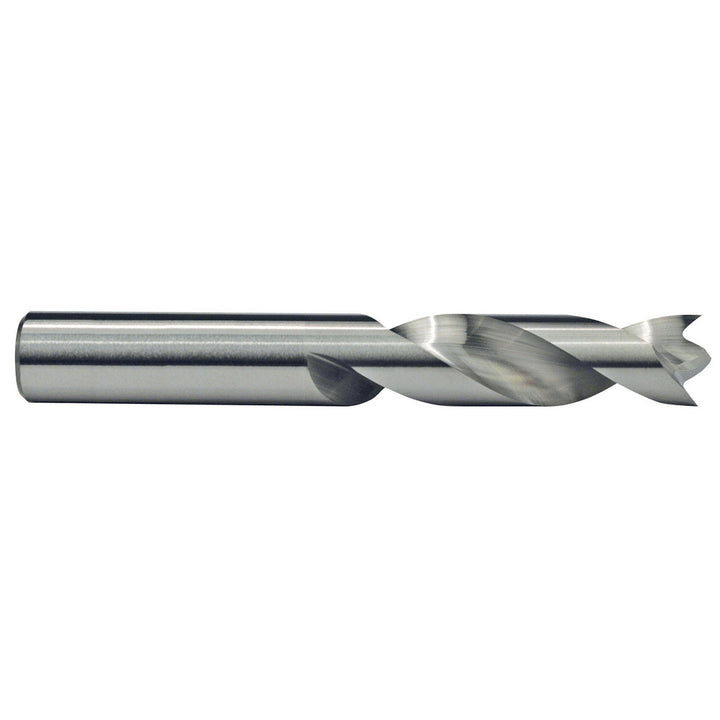

3/8" Solid Carbide Screw Machine Drill Bit - M.A. Ford. 20737500
MFR# 20737500Series 207
$165.13List $208.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/8
Flutes2
Description
The M.A. Ford. 20737500 is a 3/8" Solid Carbide Screw Machine drill bit. Suited for non-ferrous metal. 1-5/8 flute length, 3-1/8 overall length. Series 207.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in3/8
Drill bit size range0.3500 to 0.4000
Drill length typeScrew Machine
Flute by diameter ratio3xD
Flute length in1-5/8
Flute typeSpiral
Number of flutes2
Overall length in3-1/8
Point typeStandard
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.3750
Shank typeStraight-Cylindrical
Spiral typeFast
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
