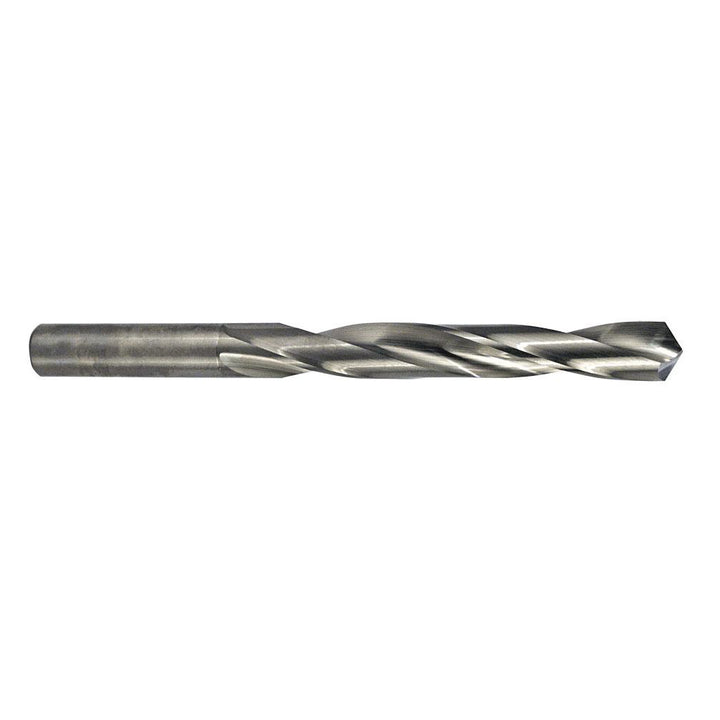

0.0511" Solid Carbide Drill Bit, 118° point - M.A. Ford. 22405110
MFR# 22405110Series 224
$15.88List $20.01
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The M.A. Ford. 22405110 is a 0.0511" Solid Carbide drill bit, 118° point. Suited for steel, aluminum & non-ferrous. Series 224.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in; -0.013 to 0.000 mm
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.0511
Drill bit size range0.0500 - 0.1000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length0.6299
Flute typeRegular Spiral
Iso 90012015 Certified
Number of flutes2
Overall length1.4961
Point typeFacet
Primary workpiece materialSteel; Aluminum & Non-Ferrous
Shank diameter0.0511
Shank length (mm)22
Shank typeStraight
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
