M.A. Ford.

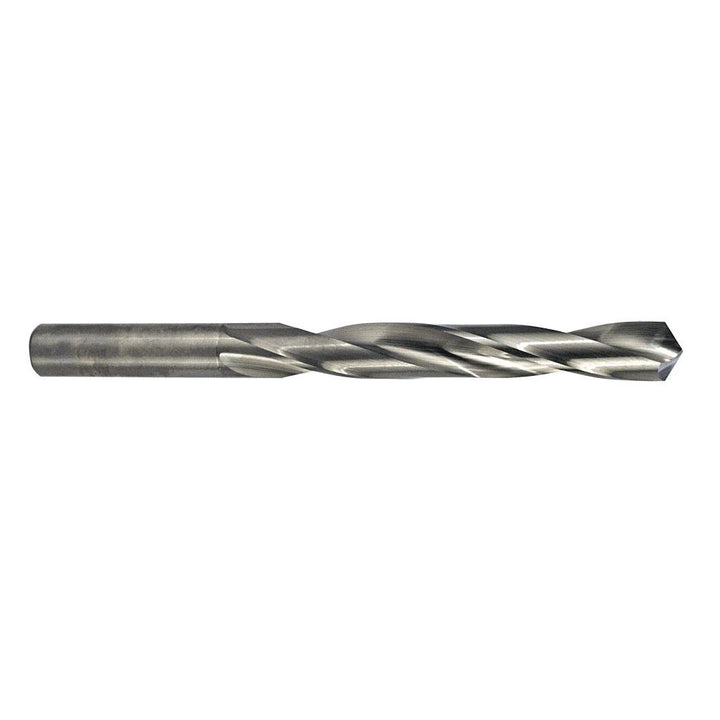

0.1535" Solid Carbide Drill Bit, 118° point - M.A. Ford. 22415350
MFR# 22415350Series 224
$31.30List $40.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The M.A. Ford. 22415350 is a 0.1535" Solid Carbide drill bit, 118° point. Suited for steel, aluminum & non-ferrous. Series 224.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in; -0.013 to 0.000 mm
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size0.1535
Drill bit size range0.1500 - 0.2000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length1.6929
Flute typeRegular Spiral
Iso 90012015 Certified
Number of flutes2
Overall length2.9528
Point typeFacet
Primary workpiece materialSteel; Aluminum & Non-Ferrous
Shank diameter0.1500
Shank length (mm)32
Shank typeStraight
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
