M.A. Ford.

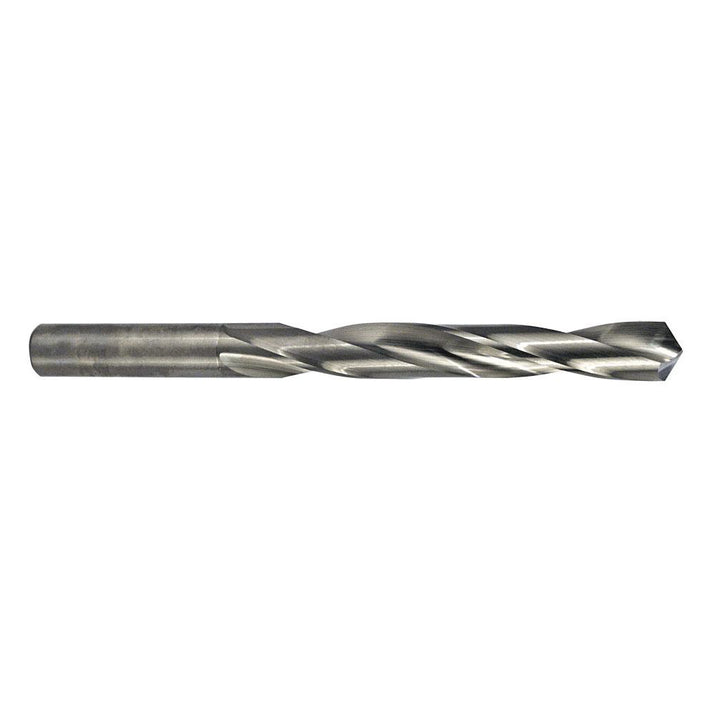

0.2165" Solid Carbide Drill Bit, 118° point - M.A. Ford. 22421650
MFR# 22421650Series 224
$43.96List $56.37
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The M.A. Ford. 22421650 is a 0.2165" Solid Carbide drill bit, 118° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. Series 224.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in; -0.013 to 0.000 mm
Drill bit materialSolid Carbide
Drill bit size0.2165
Drill bit size range0.2000 - 0.2500
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)57.00
Flute typeSpiral
Iso 90012015 Certified
Number of flutes2
Overall length (mm)93.00
Point typeFaceted
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.2200
Shank length (mm)36.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
