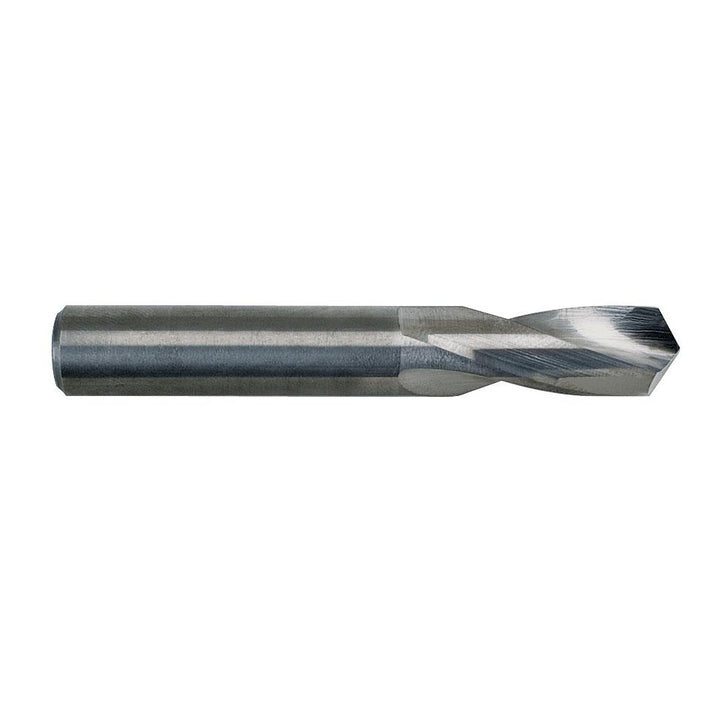

0.0492" Solid Carbide Short Drill Bit, 118° point - M.A. Ford. 22604920

M.A. Ford.

0.0492" Solid Carbide Short Drill Bit, 118° point - M.A. Ford. 22604920

MFR# 22604920Series 226

$7.74List $9.93 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The M.A. Ford. 22604920 is a 0.0492" Solid Carbide Short drill bit, 118° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. Series 226.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.013 mm
Drill bit size0.0492
Drill bit size range0.0000 to 0.1000
Drill length typeShort
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)8.00
Flute typeSpiral
Number of flutes2
Number of margins1
Overall length1.1811
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.0492
Shank length0.8661
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
Tool materialSolid Carbide
