M.A. Ford.

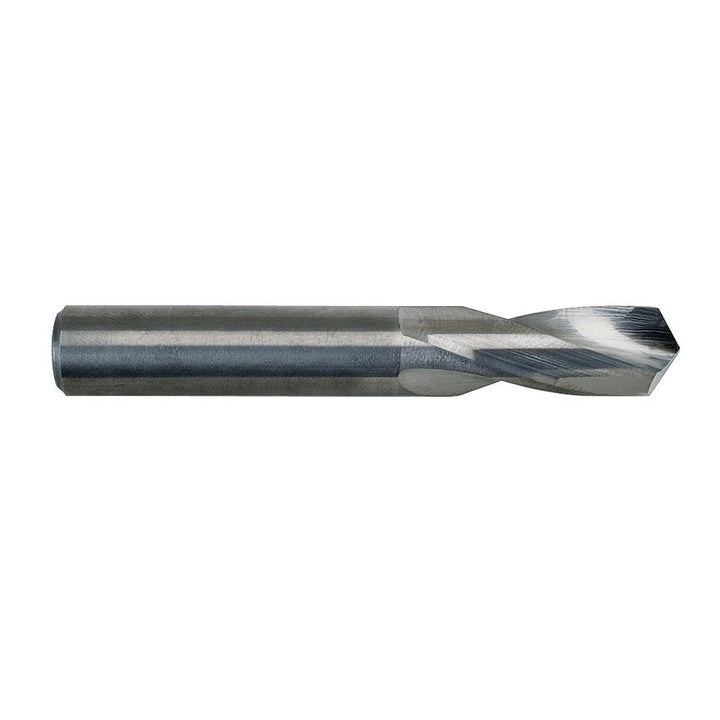

0.0531" Solid Carbide Short Drill Bit, 118° point - M.A. Ford. 22605310
MFR# 22605310Series 226
$7.99List $10.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The M.A. Ford. 22605310 is a 0.0531" Solid Carbide Short drill bit, 118° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. Series 226.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.013 mm
Drill bit size0.0531
Drill bit size range0.0000 to 0.1000
Drill length typeShort
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)9.00
Flute typeSpiral
Number of flutes2
Number of margins1
Overall length1.2598
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.0531
Shank length0.9055
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
Tool materialSolid Carbide
