0.2165" Solid Carbide Short Drill Bit, 118° point - M.A. Ford. 22621650

M.A. Ford.

0.2165" Solid Carbide Short Drill Bit, 118° point - M.A. Ford. 22621650

MFR# 22621650Series 226

$31.44List $40.32 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

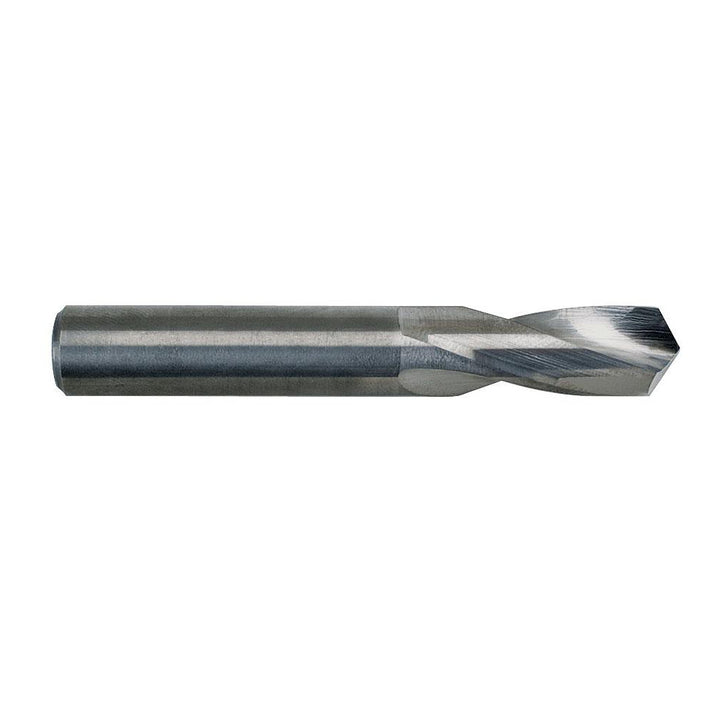

The M.A. Ford. 22621650 is a 0.2165" Solid Carbide Short drill bit, 118° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. Series 226.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in; +0.000 to -0.013 mm
Drill bit size0.2165
Drill bit size range0.2000 to 0.2500
Drill length typeShort
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)28.00
Flute typeSpiral
Number of flutes2
Overall length2.5984
Point typeFaceted
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.2165
Shank length1.4961
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6539
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
