M.A. Ford.

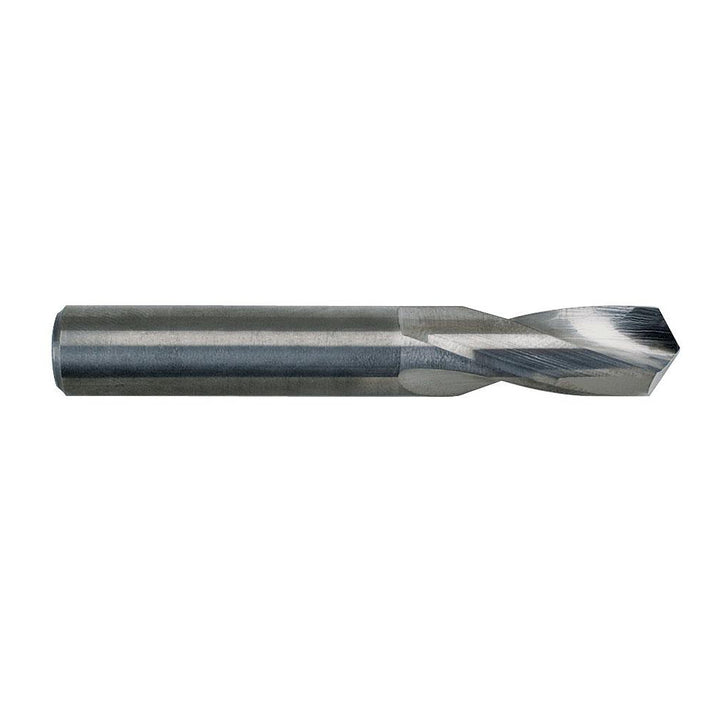

0.2205" Solid Carbide Short Drill Bit, 118° point - M.A. Ford. 22622050
MFR# 22622050Series 226
$37.58List $47.36
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The M.A. Ford. 22622050 is a 0.2205" Solid Carbide Short drill bit, 118° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous. Series 226.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.013 mm
Drill bit size0.2205
Drill bit size range0.2000 to 0.2500
Drill length typeShort
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)28.00
Flute typeRegular Spiral
Number of flutes2
Number of margins1
Overall length2.5984
Point type4 Facet
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.2205
Shank length1.4961
Shank typeStraight
Specification designationDIN
Spiral typeRegular
Tool materialSolid Carbide
