M.A. Ford.

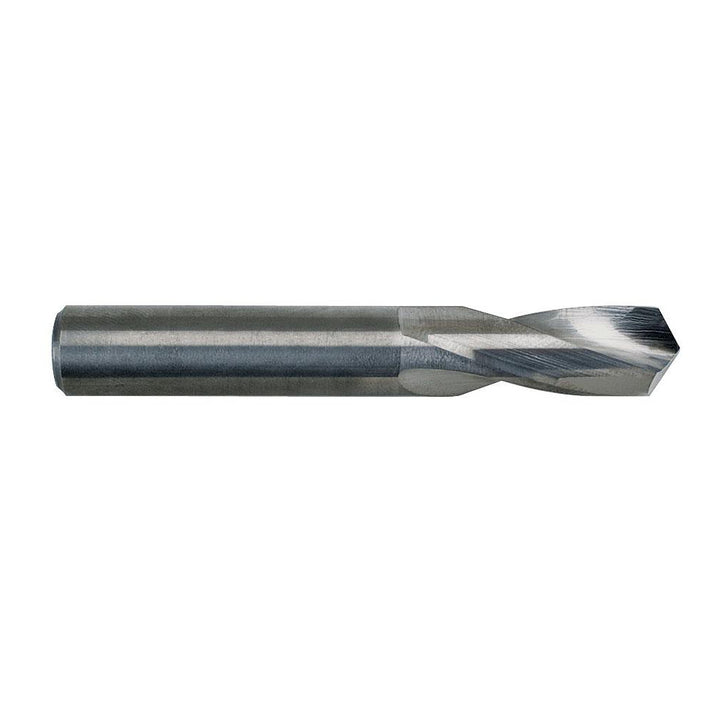

0.3819" Solid Carbide Short Drill Bit, 118° point - M.A. Ford. 22638190
MFR# 22638190Series 226
$84.09List $107.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The M.A. Ford. 22638190 is a 0.3819" Solid Carbide Short drill bit, 118° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. Series 226.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.013 mm
Drill bit size0.3819
Drill bit size range0.3500 to 0.4000
Drill length typeShort
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)43.00
Flute typeSpiral
Number of flutes2
Number of margins1
Overall length3.5039
Point typeFour Facet
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.3819
Shank length1.8110
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
Tool materialSolid Carbide
