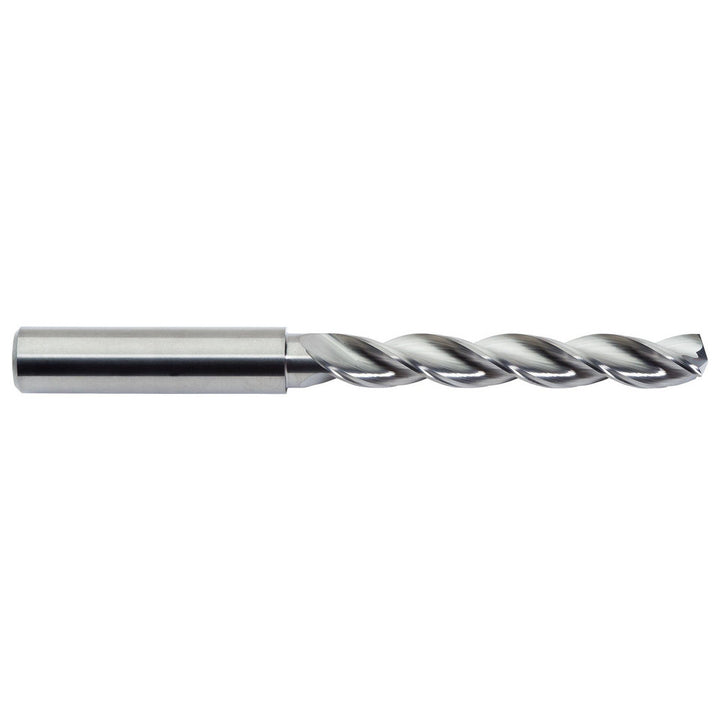

1/16" Solid Carbide Drill Bit, 150° point - M.A. Ford. 22906250

M.A. Ford.

1/16" Solid Carbide Drill Bit, 150° point - M.A. Ford. 22906250

MFR# 22906250Series 229

$33.87List $43.44 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/16
Flutes3

Description

The M.A. Ford. 22906250 is a 1/16" Solid Carbide drill bit, 150° point. Suited for non-ferrous metal. 3/4 flute length, 1-1/2 overall length. Series 229.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance0.0001 to 0.0004 in
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size in1/16
Drill bit size range0.0500 - 0.1000
Drill point angle degrees150
Drill point length0.0080
Flute by diameter ratio5xD
Flute length in3/4
Flute typeParabolic
Iso 90012015 Certified
Maximum drilling depth in9/16
Number of flutes3
Overall length in1-1/2
Point typeStandard
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/16
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6537 L
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
