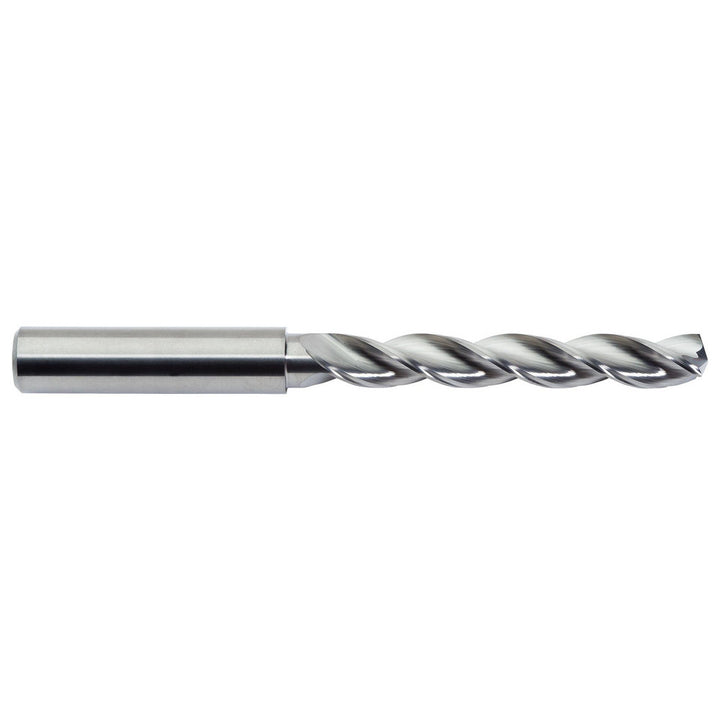

#50 Solid Carbide Drill Bit, 150° point - M.A. Ford. 22907000

M.A. Ford.

#50 Solid Carbide Drill Bit, 150° point - M.A. Ford. 22907000

MFR# 22907000Series 229

$35.64List $45.71 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3

Description

The M.A. Ford. 22907000 is a #50 Solid Carbide drill bit, 150° point. Suited for non-ferrous metal. 7/8 flute length, 1-3/4 overall length. Series 229.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance0.0001 to 0.0004 in
Drill bit materialSolid Carbide
Drill bit size0.0700
Drill bit size range0.0500 - 0.1000
Drill bit size wire#50
Drill point angle degrees150
Drill point length0.0080
Flute by diameter ratio5xD
Flute length in7/8
Flute typeSpiral
Iso 90012015 Certified
Maximum drilling depth0.6875
Number of flutes3
Overall length in1-3/4
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.0700
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6537 L
Tool performanceHigh Performance
