M.A. Ford.
#43 Solid Carbide Drill Bit, 150° point - M.A. Ford. 22908900
MFR# 22908900Series 229
$35.64List $45.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description

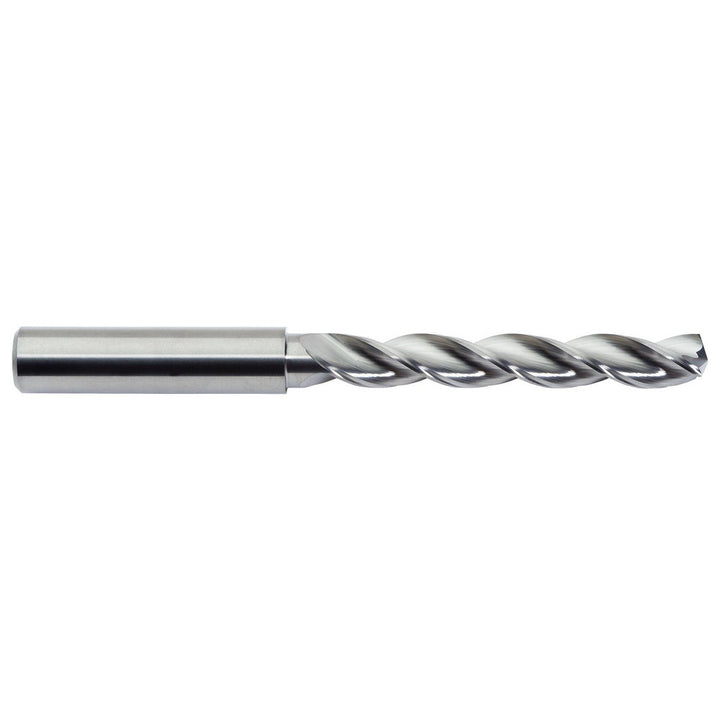

The M.A. Ford. 22908900 is a #43 Solid Carbide drill bit, 150° point. Suited for non-ferrous metal. 1 flute length, 2 overall length. Series 229.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance0.0001 to 0.0004 in; 0.002 to 0.012 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size0.0890
Drill bit size range0.0500 - 0.1000
Drill bit size wire#43
Drill point angle degrees150
Drill point length0.0110
Flute by diameter ratio5xD
Flute length in1
Flute typeParabolic
Iso 90012015 Certified
Maximum drilling depth in3/4
Number of flutes3
Overall length in2
Point typeStandard
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.0890
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6537 L
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
