M.A. Ford.

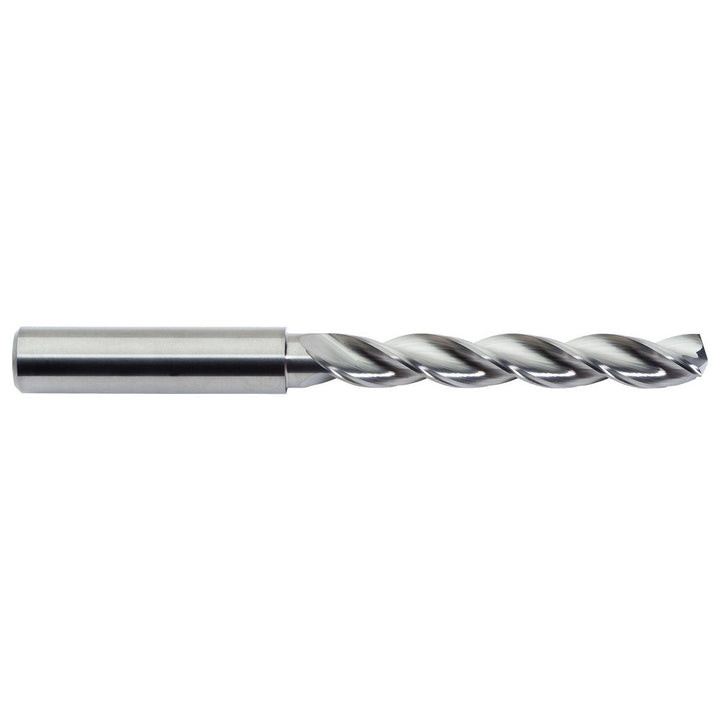

#39 Solid Carbide Drill Bit, 150° point - M.A. Ford. 22909950
MFR# 22909950Series 229
$45.46List $57.29
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The M.A. Ford. 22909950 is a #39 Solid Carbide drill bit, 150° point. Suited for non-ferrous metal. Series 229.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0001 to +0.0004 in
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size0.0995
Drill bit size wire#39
Drill point angle degrees150
Drill point length0.0120
Flute by diameter ratio5xD
Flute length1.2500
Flute typeSpiral
Iso 90012015 Certified
Maximum drilling depth0.9375
Number of flutes3
Overall length2.2500
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.0995
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6537 L
Tool performanceHigh Performance
