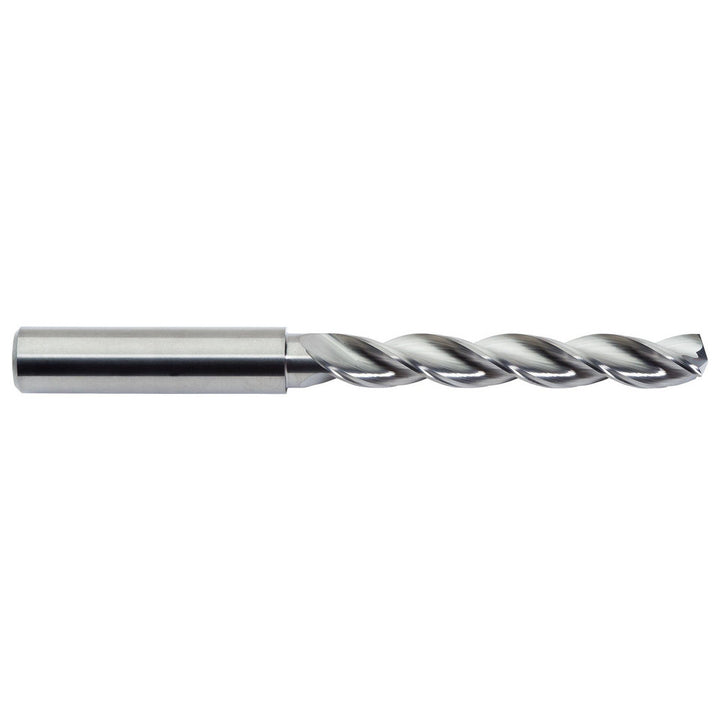

#35 Solid Carbide Drill Bit, 150° point - M.A. Ford. 22911000

M.A. Ford.

#35 Solid Carbide Drill Bit, 150° point - M.A. Ford. 22911000

MFR# 22911000Series 229

$40.06List $51.38 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3

Description

The M.A. Ford. 22911000 is a #35 Solid Carbide drill bit, 150° point. Suited for non-ferrous metal. 1-1/4 flute length, 2-1/4 overall length. Series 229.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance0.0001 to 0.0004 in
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size0.1100
Drill bit size range0.1000 - 0.1500
Drill bit size wire#35
Drill point angle degrees150
Drill point length0.0130
Flute by diameter ratio5xD
Flute length in1-1/4
Flute typeSpiral
Iso 90012015 Certified
Maximum drilling depth0.9400
Number of flutes3
Overall length in2-1/4
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.1100
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6537 L
Tool performanceHigh Performance
