M.A. Ford.

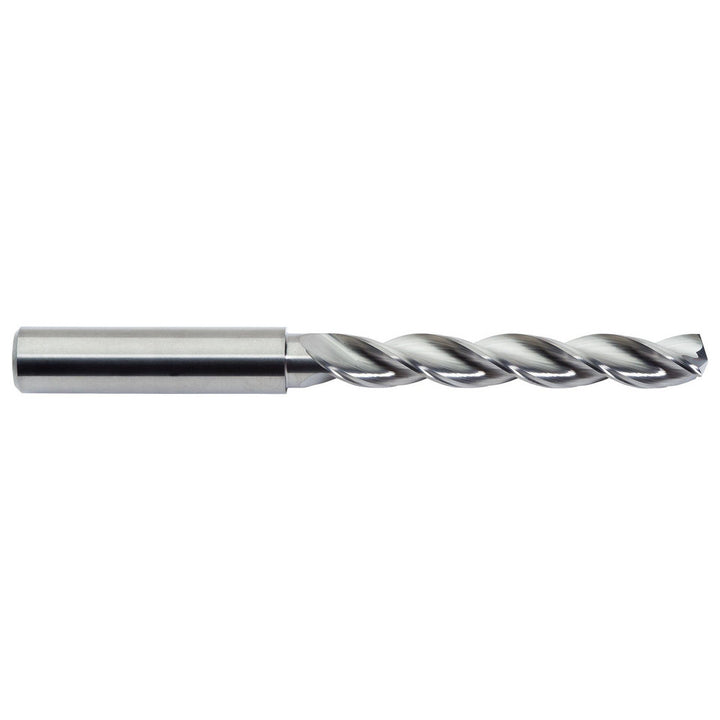

#30 Solid Carbide Drill Bit, 150° point - M.A. Ford. 22912850
MFR# 22912850Series 229
$50.91List $64.16
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The M.A. Ford. 22912850 is a #30 Solid Carbide drill bit, 150° point. Suited for non-ferrous metal. 1-1/4 flute length, 2-1/4 overall length. Series 229.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance0.0002 to 0.0006 in; 0.004 to 0.016 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size0.1285
Drill bit size range0.1000 - 0.1500
Drill bit size wire#30
Drill point angle degrees150
Drill point length0.0150
Flute by diameter ratio5xD
Flute length in1-1/4
Flute typeParabolic
Iso 90012015 Certified
Maximum drilling depth in15/16
Number of flutes3
Overall length in2-1/4
Point typeStandard
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.1285
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6537 L
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
