M.A. Ford.

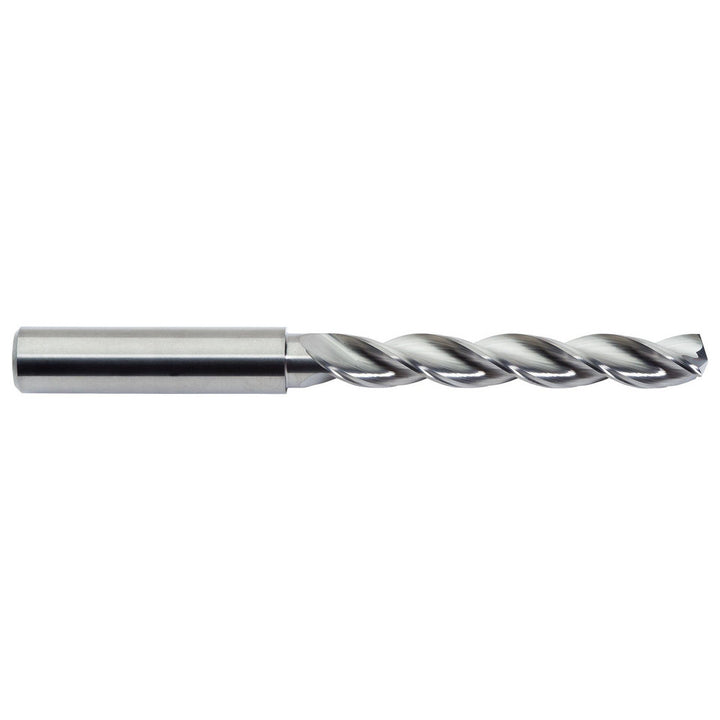

0.2362" Solid Carbide Drill Bit, 150° point - M.A. Ford. 22923620
MFR# 22923620Series 229
$77.73List $99.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The M.A. Ford. 22923620 is a 0.2362" Solid Carbide drill bit, 150° point. Suited for non-ferrous metal. Series 229.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance0.0002 to 0.0006 in; 0.004 to 0.016 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size0.2362
Drill bit size range0.2000 - 0.2500
Drill point angle degrees150
Drill point length (mm)0.72
Flute by diameter ratio5xD
Flute length (mm)44.00
Flute typeParabolic
Iso 90012015 Certified
Maximum drilling depth (mm)35.00
Number of flutes3
Overall length (mm)82.00
Point typeStandard
Primary workpiece materialNon-Ferrous Metal
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537L
Spiral typeRegular
StandardsDIN 6537 L
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
