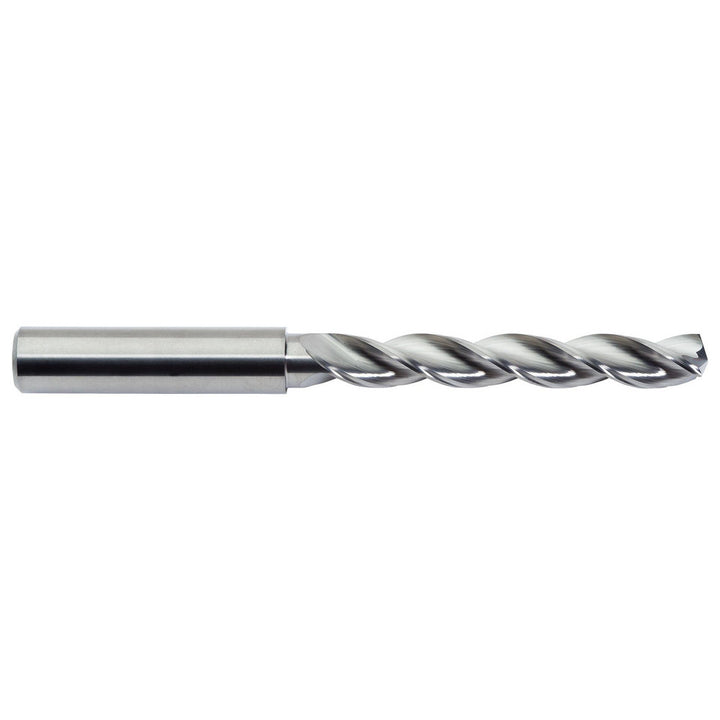

17/64" Solid Carbide Drill Bit, 150° point - M.A. Ford. 22926560

M.A. Ford.

17/64" Solid Carbide Drill Bit, 150° point - M.A. Ford. 22926560

MFR# 22926560Series 229

$95.38List $122.34 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size17/64
Flutes3

Description

The M.A. Ford. 22926560 is a 17/64" Solid Carbide drill bit, 150° point. Suited for non-ferrous metal. 2-1/8 flute length, 3-1/2 overall length. Series 229.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance0.0003 to 0.0008 in; 0.006 to 0.021 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size in17/64
Drill bit size range0.2500 - 0.3000
Drill point angle degrees150
Drill point length0.0320
Flute by diameter ratio5xD
Flute length in2-1/8
Flute typeParabolic
Iso 90012015 Certified
Maximum drilling depth in1-19/32
Number of flutes3
Overall length in3-1/2
Point typeStandard
Primary workpiece materialNon-Ferrous Metal
Shank diameter in17/64
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6537 L
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
