21/64" Solid Carbide Drill Bit, 150° point - M.A. Ford. 22932810

M.A. Ford.

21/64" Solid Carbide Drill Bit, 150° point - M.A. Ford. 22932810

MFR# 22932810Series 229

$119.98List $153.89 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size21/64
Flutes3

Description

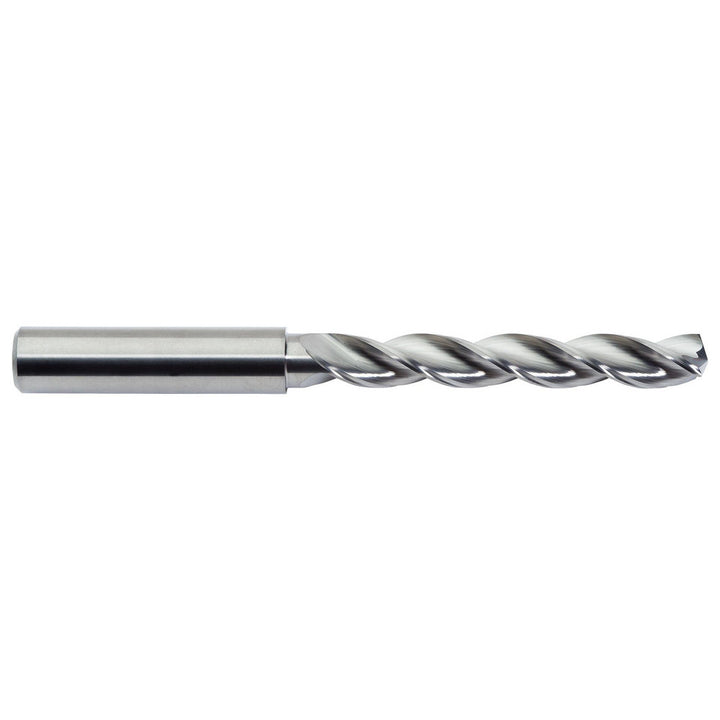

The M.A. Ford. 22932810 is a 21/64" Solid Carbide drill bit, 150° point. Suited for non-ferrous metal. 2-1/2 flute length, 4 overall length. Series 229.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance0.0003 to 0.0008 in; 0.006 to 0.021 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size in21/64
Drill bit size range0.3000 - 0.3500
Drill point angle degrees150
Drill point length0.0400
Flute by diameter ratio5xD
Flute length in2-1/2
Flute typeParabolic
Iso 90012015 Certified
Maximum drilling depth in1-7/8
Number of flutes3
Overall length in4
Point typeStandard
Primary workpiece materialNon-Ferrous Metal
Shank diameter in21/64
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6537 L
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
