M.A. Ford.
3/8" Solid Carbide Drill Bit, 150° point - M.A. Ford. 22937500
MFR# 22937500Series 229
$177.72List $223.97
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/8
Flutes3
Description

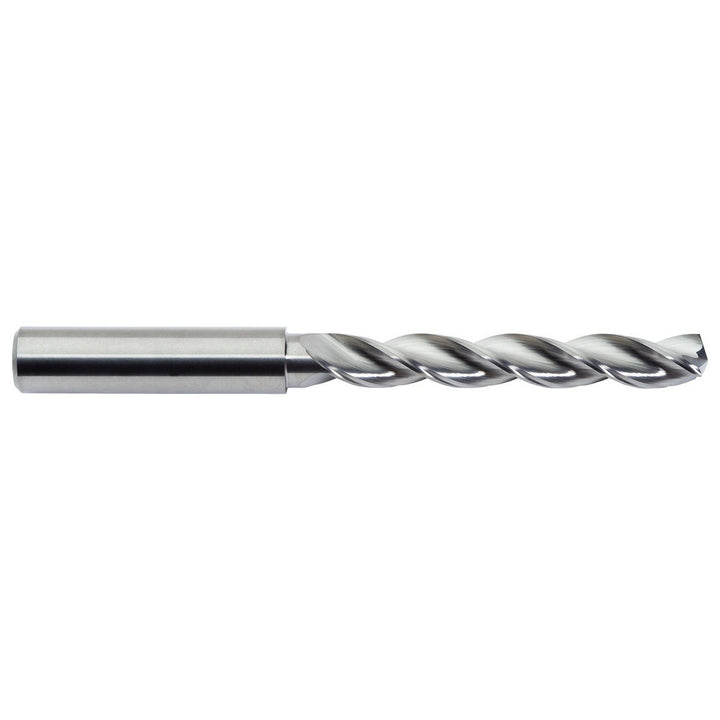

The M.A. Ford. 22937500 is a 3/8" Solid Carbide drill bit, 150° point. Suited for non-ferrous metal. 2-3/4 flute length, 4-1/4 overall length. Series 229.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance0.0003 to 0.0008 in; 0.006 to 0.021 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size in3/8
Drill bit size range0.3500 - 0.4000
Drill point angle degrees150
Drill point length0.0450
Flute by diameter ratio5xD
Flute length in2-3/4
Flute typeParabolic
Iso 90012015 Certified
Maximum drilling depth in2-1/16
Number of flutes3
Overall length in4-1/4
Point typeStandard
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/8
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6537 L
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
