1/2" Solid Carbide Drill Bit, 150° point - M.A. Ford. 22950000

M.A. Ford.

1/2" Solid Carbide Drill Bit, 150° point - M.A. Ford. 22950000

MFR# 22950000Series 229

$259.12List $332.34 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/2
Flutes3

Description

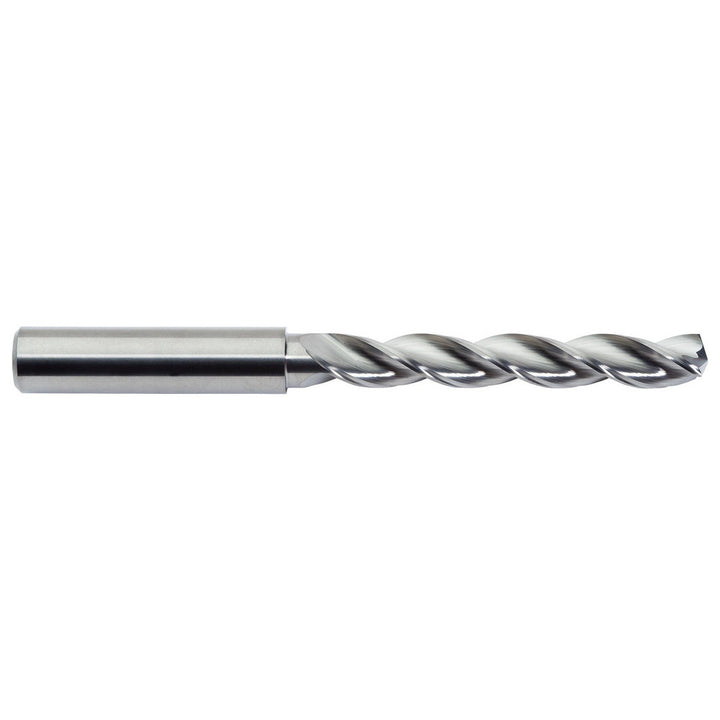

The M.A. Ford. 22950000 is a 1/2" Solid Carbide drill bit, 150° point. Suited for non-ferrous metal. 3 flute length, 4-3/4 overall length. Series 229.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance0.0003 to 0.0010 in; 0.007 to 0.025 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size in1/2
Drill bit size range0.5000 - 0.6500
Drill point angle degrees150
Drill point length0.0600
Flute by diameter ratio5xD
Flute length in3
Flute typeParabolic
Iso 90012015 Certified
Maximum drilling depth in2-1/4
Number of flutes3
Overall length in4-3/4
Point typeStandard
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/2
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6537 L
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
