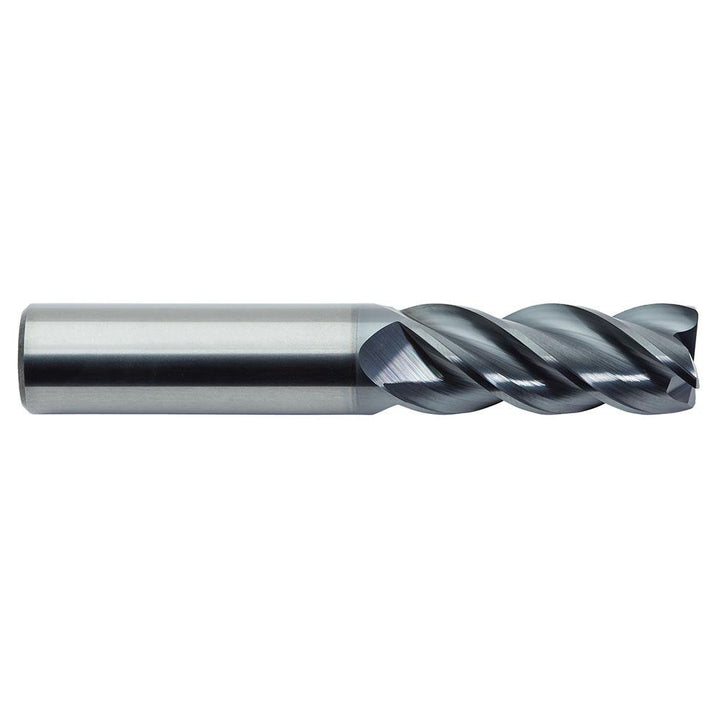

3/16" 4-Flute Square End Mill - M.A. Ford. 27718700B

M.A. Ford.

3/16" 4-Flute Square End Mill - M.A. Ford. 27718700B

MFR# 27718700BSeries 277

$35.71List $45.79 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes4

Description

The M.A. Ford. 27718700B is a 3/16 4-flute square end mill. 3/16 length of cut, 2.0000 overall length. Series 277.

Specifications

CentercuttingYes
Cutting directionRight Hand
Flute directionRight Hand
Flute typeHelical
Helix angle41
Length of cut in3/16
Mill diameter in3/16
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length2.0000
Shank diameter0.1900
Shank diameter tolerance+0/-0.00031 in
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
