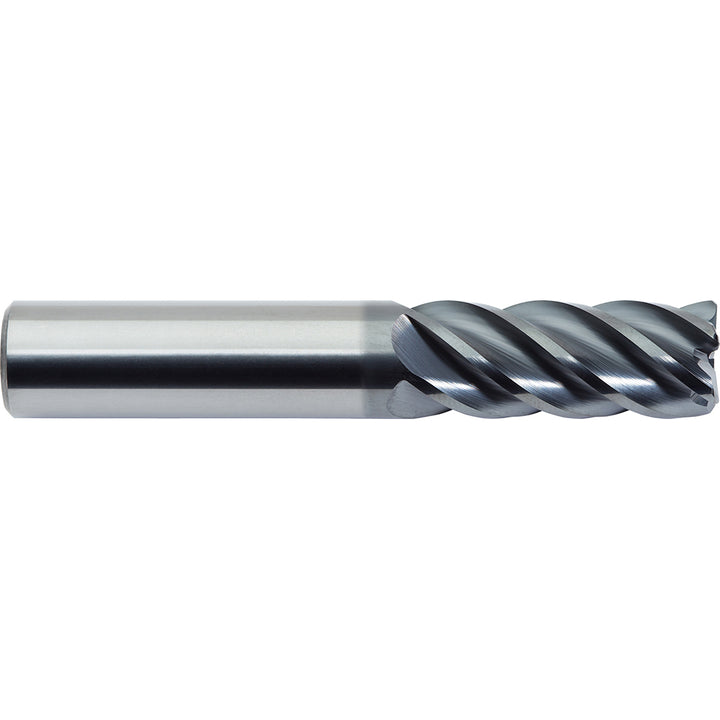

3/16" 4-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 27718711B

MFR# 27718711BSeries 277

$40.23List $51.60 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes4

MaterialSolid Carbide

Description

The M.A. Ford. 27718711B is a 3/16 4-flute Solid Carbide corner radius end mill. Suited for steel, stainless steel, cast iron, superalloys & titanium. 7/16 length of cut, 2 overall length. Series 277.

Specifications

CentercuttingYes

ChipbreakerNo

Coolant throughNo

Corner radius0.0100

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix styleVariable

Length of cut in7/16

Length typeShort

Manufacturers catalog number27718711B

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Material removal typeFinishing

Mill diameter in3/16

Mill diameter tolerance+0.0000 to -0.0020 in

Number of flutes4

Overall length in2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Reach length in7/16

Shank diameter in3/16

Shank diameter tolerance+0.0000 to -0.0003 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
