1/2" 4-Flute Solid Carbide Square End Mill, AlCrN - M.A. Ford. 277X5000B

M.A. Ford.

1/2" 4-Flute Solid Carbide Square End Mill, AlCrN - M.A. Ford. 277X5000B

MFR# 277X5000B

$215.76List $276.73 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingAlCrN

Description

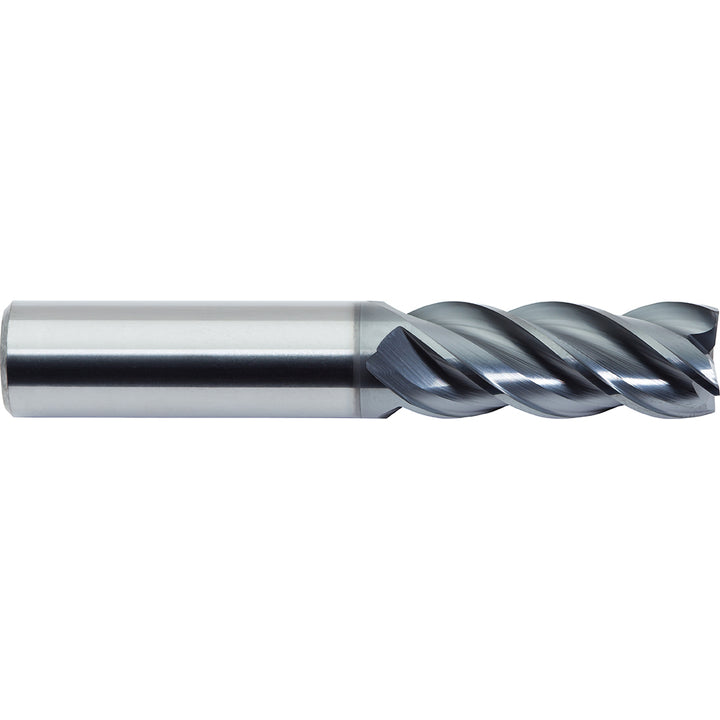

The M.A. Ford. 277X5000B is a 1/2 4-flute Solid Carbide (Micrograin) square end mill with a AlCrN finish for longer tool life. 3 length of cut, 5 overall length.

Specifications

CentercuttingYes
Coating finishAlCrN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle38/41
Length of cut in3
Length of cut range2.0000+
Length typeExtra Long
Material gradeMicrograin
Mill diameter in1/2
Number of flutes4
Overall length in5
Shank diameter in1/2
Variable helixYes
Variable indexNo
