M.A. Ford.

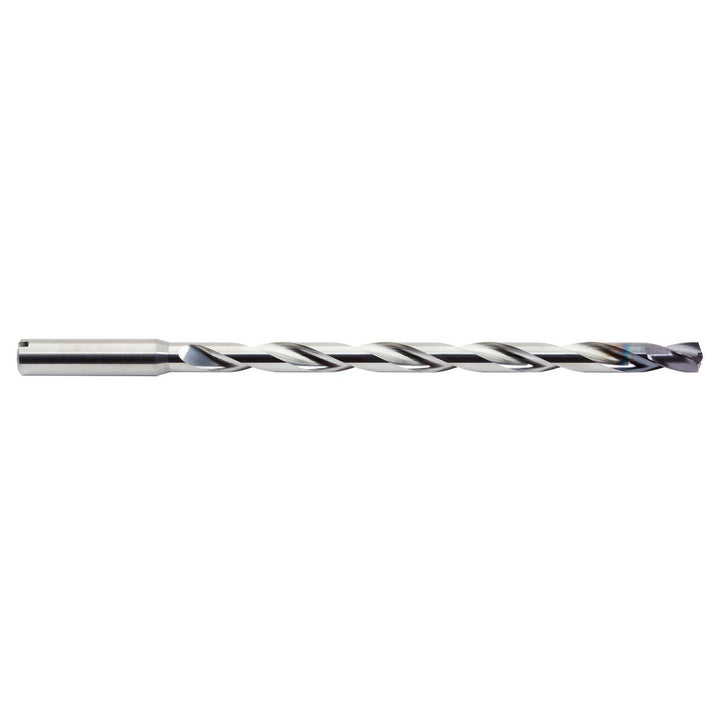

0.2283" Solid Carbide Drill Bit, TiN, 142° point - M.A. Ford. 2XDCE2283A
MFR# 2XDCE2283ASeries 2XDCE
$394.36List $457.22
Save 13%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The M.A. Ford. 2XDCE2283A is a 0.2283" Solid Carbide drill bit with a TiN finish, 142° point. Suited for cast iron, hardened steel, stainless steel, steel. Series 2XDCE.
Specifications
Coating finishTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.012 mm
Drill bit gradeHigh Performance
Drill bit size0.2283
Drill point angle142
Drill point length (mm)0.90
Flute by diameter ratio19xD
Flute length4.3000
Flute typeSpiral
Maximum drilling depth (mm)88.00
Number of flutes2
Overall length (mm)163.00
Primary workpiece materialCast Iron; Hardened Steel; Stainless Steel; Steel
Secondary workpiece materialAluminum; Carbon Steel; Cast Iron; Hardened Steel; High Temperature Alloy; Non-Ferrous Metals; Stainless Steel
Shank diameter0.2362
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationDeep Hole Drilling
Tool materialSolid Carbide
Web configurationTapered
