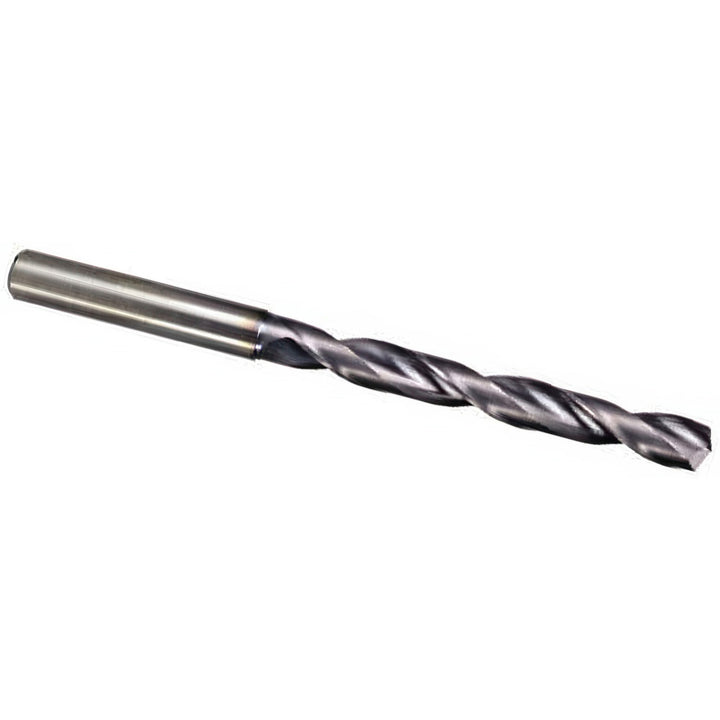

#24 Solid Carbide Drill Bit, Coated, 142° point - M.A. Ford. 2XDCL1520A
MFR# 2XDCL1520ASeries 2XDCL
$123.99List $151.77
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingCoated
Description
The M.A. Ford. 2XDCL1520A is a #24 Solid Carbide drill bit with a Coated finish, 142° point. 1-3/4 flute length. Series 2XDCL.
Specifications
Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00000 to -0.00047 in
Drill bit size0.1520
Drill bit size wire#24
Drill point angle degrees142
Drill point length0.0240
Flute length in1-3/4
Flute length x diameter ratio7xD
Flute typeSpiral
Material applicationCast Iron; Titanium; Carbon Steel; Steel; Tool Steel
Maximum drilling depth1.0000
Overall length3-5/8
Shank diameter in5/32
Shank length1.8750
Shank typeStraight
Spiral typeRegular
Threaded shankNo
Tool materialSolid Carbide
