M.A. Ford.
0.2913" Solid Carbide Drill Bit, TiN, 142° point - M.A. Ford. 2XDCL2913A
MFR# 2XDCL2913ASeries 2XDCL
$146.70List $173.09
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description

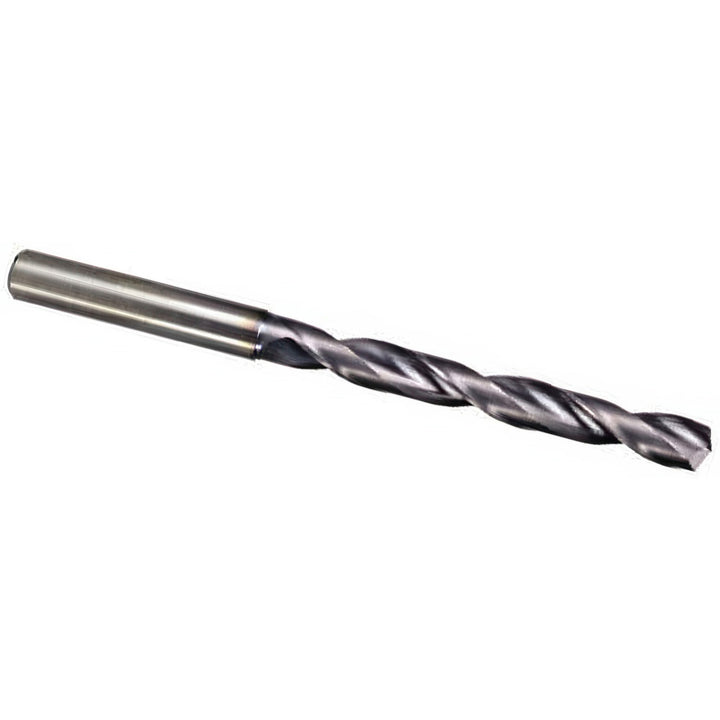

The M.A. Ford. 2XDCL2913A is a 0.2913" Solid Carbide drill bit with a TiN finish, 142° point. Series 2XDCL.
Specifications
Coating finishTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.015 mm
Drill bit size0.2913
Drill point angle degrees142
Drill point length (mm)1.15
Flute length (mm)70.00
Flute length x diameter ratio7xD
Flute typeSpiral
Material applicationCast Iron; Titanium; Carbon Steel; Steel; Tool Steel
Maximum drilling depth (mm)56.00
Overall length (mm)118.00mm
Shank diameter (mm)8.00mm
Shank length1.8898in
Shank typeStraight-Cylindrical
Spiral typeRegular
Threaded shankNo
Tool materialSolid Carbide
