0.3150" Solid Carbide Drill Bit, TiN, 142° point - M.A. Ford. 2XDCL3150A
MFR# 2XDCL3150ASeries 2XDCL
$226.30List $262.38
Save 13%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description

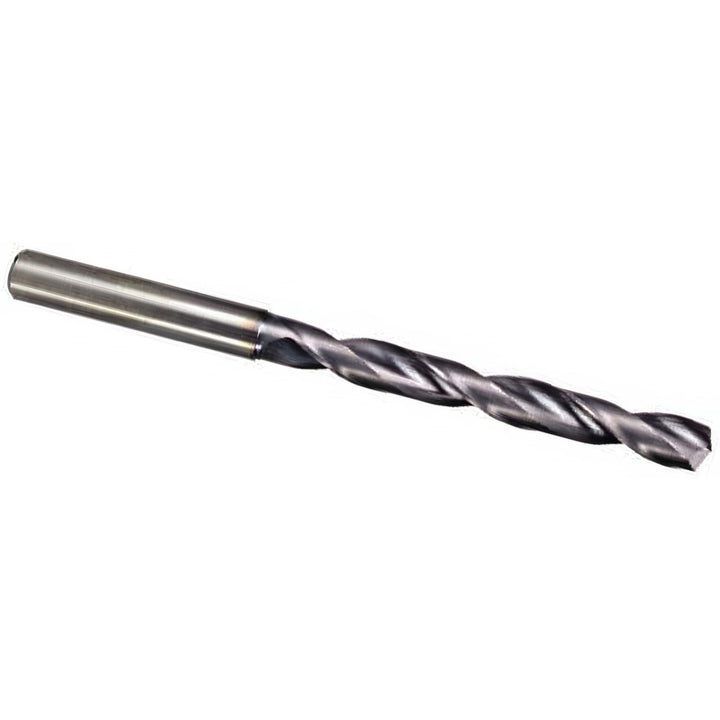

The M.A. Ford. 2XDCL3150A is a 0.3150" Solid Carbide drill bit with a TiN finish, 142° point. Series 2XDCL.
Specifications
Coating finishTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.015 mm
Drill bit size0.3150
Drill point angle degrees142
Drill point length (mm)1.24
Flute length (mm)70.00
Flute length x diameter ratio7xD
Flute typeSpiral
Material applicationCast Iron; Titanium; Carbon Steel; Steel; Tool Steel
Maximum drilling depth (mm)56.00
Overall length (mm)118.00mm
Shank diameter (mm)8.00mm
Shank length1.8898in
Shank typeStraight-Cylindrical
Spiral typeRegular
Threaded shankNo
Tool materialSolid Carbide
