M.A. Ford.
0.3661" Solid Carbide Drill Bit, TiN, 142° point - M.A. Ford. 2XDCL3661A
MFR# 2XDCL3661ASeries 2XDCL
$282.01List $345.19
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description

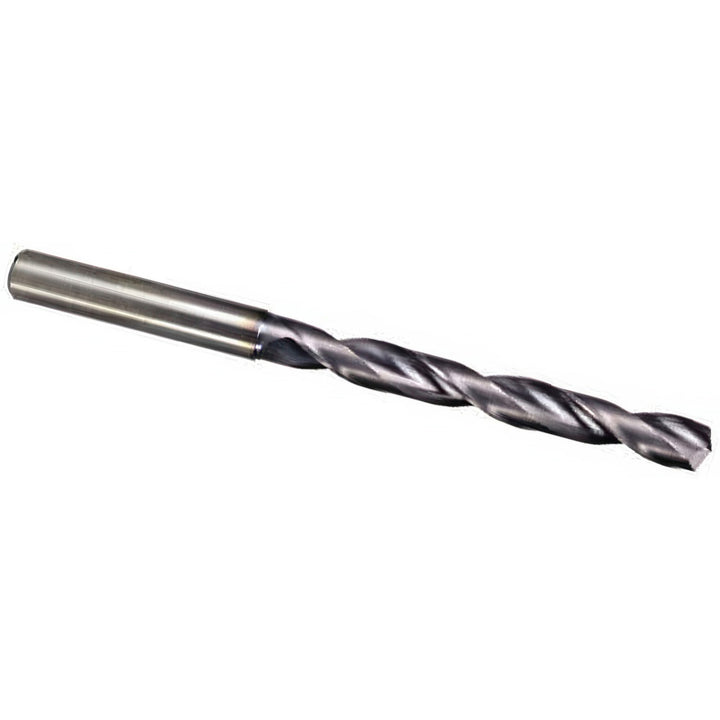

The M.A. Ford. 2XDCL3661A is a 0.3661" Solid Carbide drill bit with a TiN finish, 142° point. Series 2XDCL.
Specifications
Coating finishTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.015 mm
Drill bit size0.3661
Drill point angle degrees142
Drill point length (mm)1.44
Flute length (mm)85.00
Flute length x diameter ratio7xD
Flute typeSpiral
Material applicationCast Iron; Titanium; Carbon Steel; Steel; Tool Steel
Maximum drilling depth (mm)68.00
Overall length (mm)136.00mm
Shank diameter (mm)10.00mm
Shank length2.0078in
Shank typeStraight-Cylindrical
Spiral typeRegular
Threaded shankNo
Tool materialSolid Carbide
