M.A. Ford.
0.4409" Solid Carbide Drill Bit, TiN, 142° point - M.A. Ford. 2XDCL4409A
MFR# 2XDCL4409ASeries 2XDCL
$432.96List $501.99
Save 13%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description

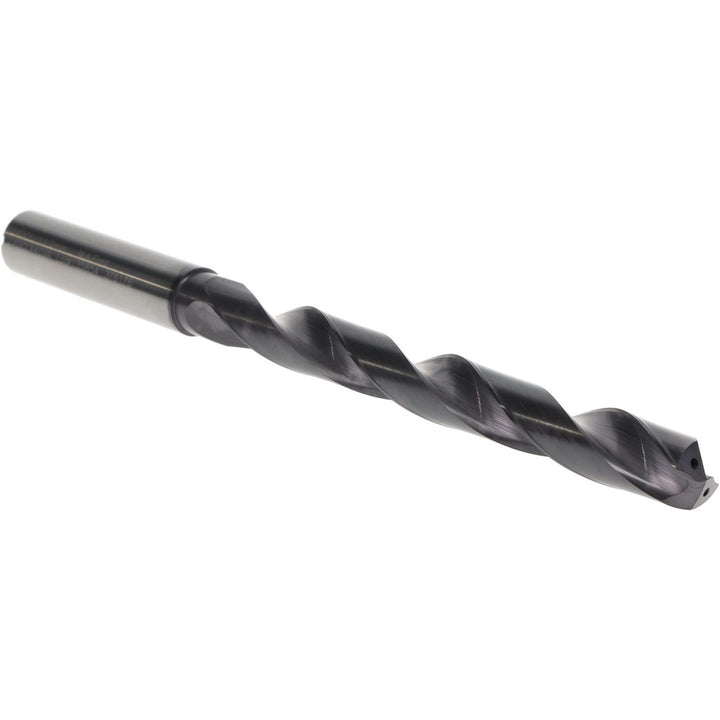

The M.A. Ford. 2XDCL4409A is a 0.4409" Solid Carbide drill bit with a TiN finish, 142° point. Series 2XDCL.
Specifications
Coating finishTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit size0.4409
Drill point angle degrees142
Drill point length (mm)1.74
Flute length (mm)102.00
Flute length x diameter ratio7xD
Flute typeSpiral
Material applicationCast Iron; Titanium; Carbon Steel; Steel; Tool Steel
Maximum drilling depth (mm)82.00
Overall length (mm)155
Shank diameter (mm)12.00
Shank length2.0867
Shank typeStraight-Cylindrical
Spiral typeRegular
Threaded shankNo
Tool materialSolid Carbide
