M.A. Ford.

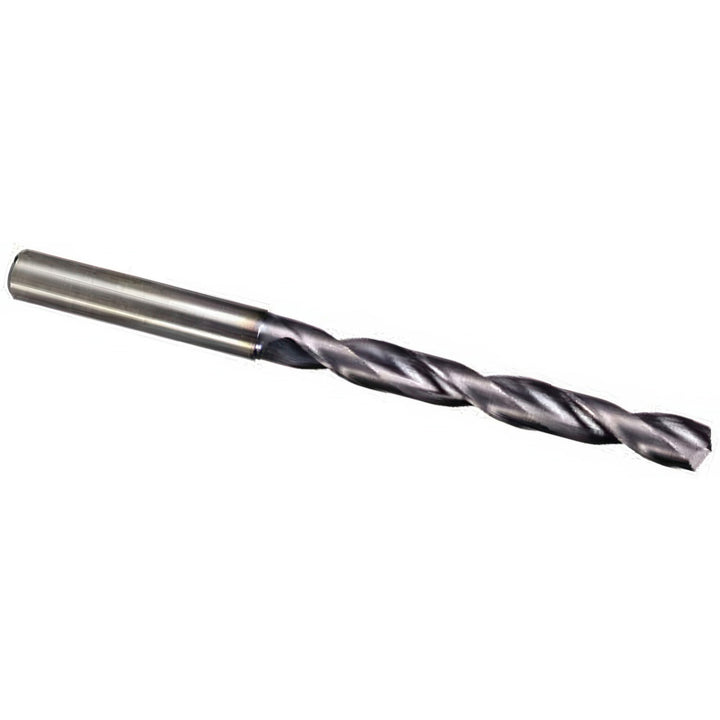

0.4606" Solid Carbide Drill Bit, Coated, 142° point - M.A. Ford. 2XDCL4606A
MFR# 2XDCL4606ASeries 2XDCL
$280.67List $331.17
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingCoated
Description
The M.A. Ford. 2XDCL4606A is a 0.4606" Solid Carbide drill bit with a Coated finish, 142° point. Series 2XDCL.
Specifications
Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit size0.4606
Drill point angle degrees142
Flute length (mm)102.00
Flute length x diameter ratio7xD
Flute typeSpiral
Material applicationCast Iron; Titanium; Carbon Steel; Steel; Tool Steel
Maximum drilling depth (mm)82.00
Overall length (mm)155.00
Shank diameter (mm)12.00
Shank length2.0867
Shank typeStraight
Spiral typeRegular
Threaded shankNo
Tool materialSolid Carbide
