M.A. Ford.

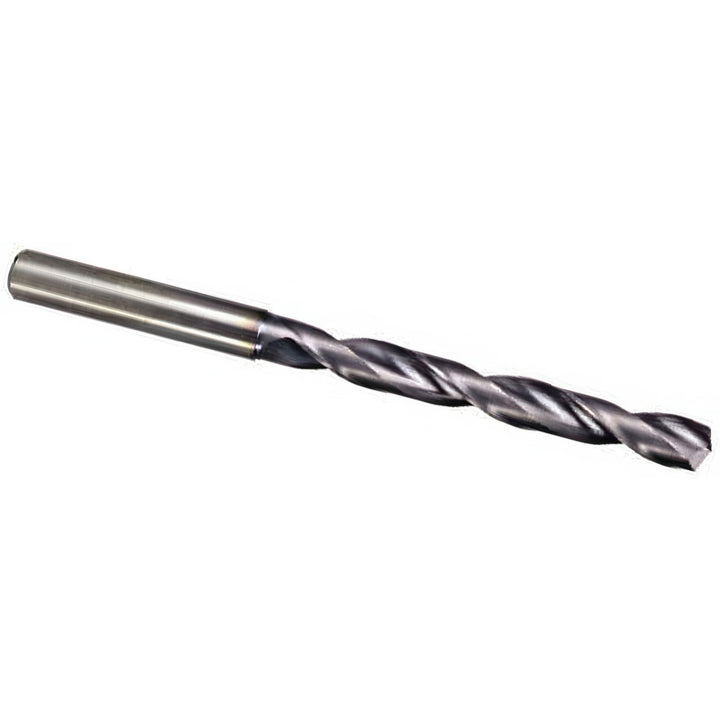

0.4646" Solid Carbide Drill Bit, TiN, 142° point - M.A. Ford. 2XDCL4646A
MFR# 2XDCL4646ASeries 2XDCL
$285.64List $331.17
Save 13%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The M.A. Ford. 2XDCL4646A is a 0.4646" Solid Carbide drill bit with a TiN finish, 142° point. Series 2XDCL.
Specifications
Coating finishTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit size0.4646
Drill point angle degrees142
Drill point length (mm)1.83
Flute length (mm)102.00
Flute length x diameter ratio7xD
Flute typeSpiral
Material applicationCast Iron; Titanium; Carbon Steel; Steel; Tool Steel
Maximum drilling depth (mm)82.00
Overall length (mm)155.00mm
Shank diameter (mm)12.00mm
Shank length2.0867in
Shank typeStraight-Cylindrical
Spiral typeRegular
Threaded shankNo
Tool materialSolid Carbide
