M.A. Ford.

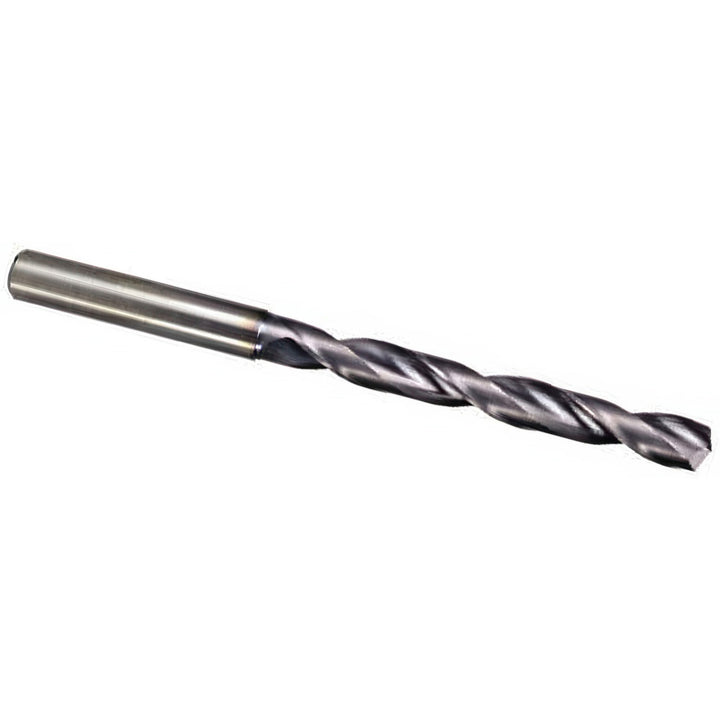

1/2" Solid Carbide Drill Bit, ALtima, 142° point - M.A. Ford. 2XDCL5000A
MFR# 2XDCL5000ASeries 2XDCL
$384.62List $470.78
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/2
CoatingALtima
Description
The M.A. Ford. 2XDCL5000A is a 1/2" Solid Carbide drill bit with a ALtima finish, 142° point. Series 2XDCL.
Specifications
Coating finishALtima
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00000 to -0.00071 in
Drill bit size in1/2
Drill point angle degrees142
Drill point length0.0770
Flute length4.3120
Flute length x diameter ratio7xD
Flute typeSpiral
Maximum drilling depth3.4500
Point typeStandard
Shank diameter in1/2in
Shank length1.9870in
Shank typeStraight-Cylindrical
Spiral typeRegular
Threaded shankNo
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
