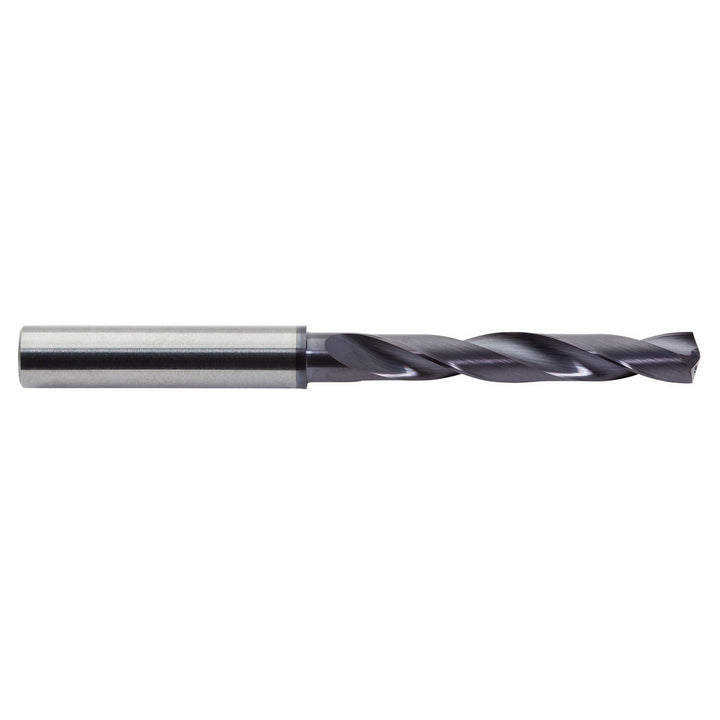

0.1339" Solid Carbide Drill Bit, AlTiN, 142° point - M.A. Ford. 2XDCR1339A

M.A. Ford.

0.1339" Solid Carbide Drill Bit, AlTiN, 142° point - M.A. Ford. 2XDCR1339A

MFR# 2XDCR1339ASeries 2XDCR

$83.22List $98.20 Save 15%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingAlTiN

Description

The M.A. Ford. 2XDCR1339A is a 0.1339" Solid Carbide drill bit with a AlTiN finish, 142° point. Suited for steel, stainless steel, high-temp alloy. Series 2XDCR.

Specifications

Coating finishAlTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.012 mm
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.1339
Drill bit size range0.1000 - 0.1500
Drill point angle degrees142
Drill point length (mm)0.53
Flute by diameter ratio5xD
Flute length1.2598
Flute typeRegular Spiral
Iso 90012015 Certified
Maximum drilling depth2.0000
Number of flutes2
Overall length3.1496
Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy
Shank diameter0.1250
Shank typeStraight
Spiral typeRegular
StandardsDIN 6537 K
Tool performanceHigh Performance
