M.A. Ford.

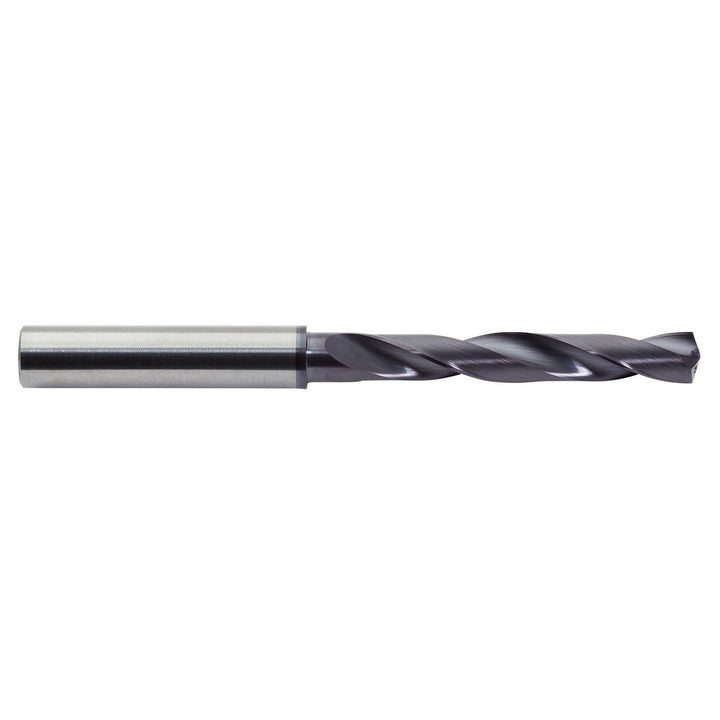

5/32" Solid Carbide Drill Bit, AlTiN, 142° point - M.A. Ford. 2XDCR1562A
MFR# 2XDCR1562ASeries 2XDCR
$110.56List $135.32
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/32
Flutes2
CoatingAlTiN
Description
The M.A. Ford. 2XDCR1562A is a 5/32" Solid Carbide drill bit with a AlTiN finish, 142° point. Suited for temp alloy. Series 2XDCR.
Specifications
Coating finishAlTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00000 to -0.00047 in
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in5/32
Drill bit size range0.1500 - 0.2000
Drill point angle degrees142
Drill point length0.0240
Flute by diameter ratio5xD
Flute length1.2600
Flute typeRegular Spiral
Iso 90012015 Certified
Maximum drilling depth1.0000
Number of flutes2
Overall length3.1500
Primary workpiece materialTemp Alloy
Shank diameter in5/32
Shank typeStraight
Spiral typeRegular
StandardsDIN 6537 K
Tool performanceHigh Performance
