M.A. Ford.

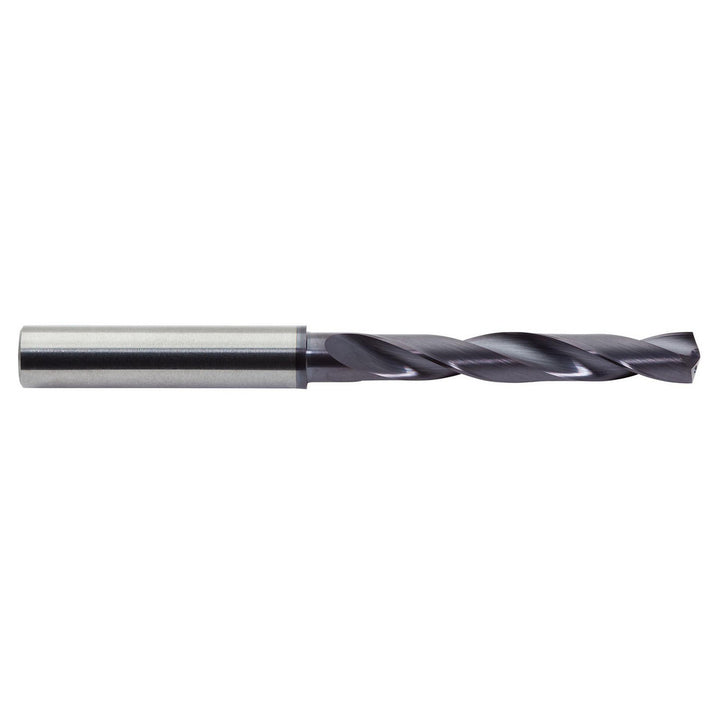

0.1693" Solid Carbide Drill Bit, ALtima, 142° point - M.A. Ford. 2XDCR1693A
MFR# 2XDCR1693ASeries 2XDCR
$115.15List $140.94
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingALtima
Description
The M.A. Ford. 2XDCR1693A is a 0.1693" Solid Carbide drill bit with a ALtima finish, 142° point. Suited for temp alloy. Series 2XDCR.
Specifications
Coating finishALtima
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.012 mm
Drill bit materialSolid Carbide
Drill bit size0.1693
Drill bit size range0.1500 - 0.2000
Drill point angle degrees142
Drill point length (mm)0.67
Flute by diameter ratio5xD
Flute length1.4961
Flute typeSpiral
Iso 90012015 Certified
Maximum drilling depth (mm)30.00
Number of flutes2
Overall length3.2283
Primary workpiece materialTemp Alloy
Shank diameter0.1968
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6537 K
Tool performanceHigh Performance
