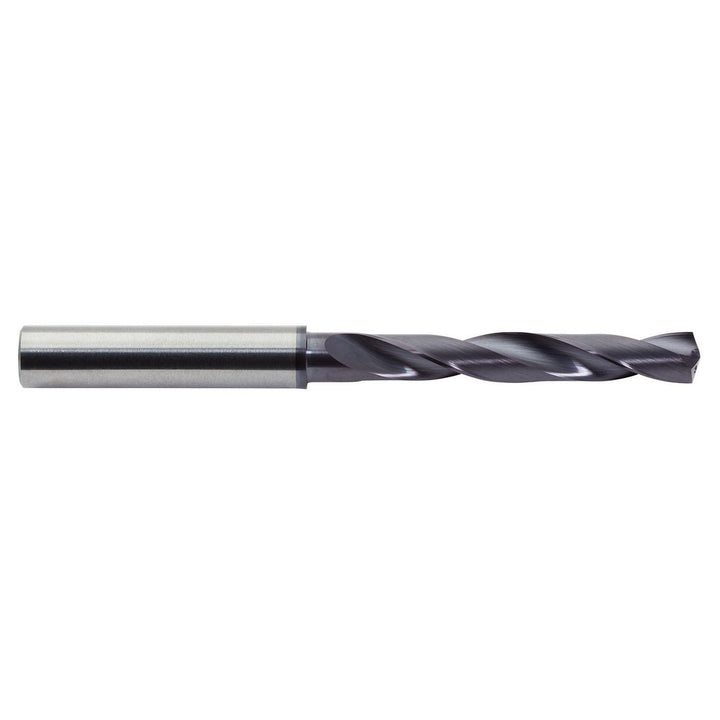

11/64" Solid Carbide Drill Bit, ALtima, 142° point - M.A. Ford. 2XDCR1719A

M.A. Ford.

11/64" Solid Carbide Drill Bit, ALtima, 142° point - M.A. Ford. 2XDCR1719A

MFR# 2XDCR1719ASeries 2XDCR

$115.15List $140.94 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size11/64
Flutes2
CoatingALtima

Description

The M.A. Ford. 2XDCR1719A is a 11/64" Solid Carbide drill bit with a ALtima finish, 142° point. Suited for temp alloy. 1-1/2 flute length. Series 2XDCR.

Specifications

Coating finishALtima
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00000 to -0.00047 in
Drill bit materialSolid Carbide
Drill bit size in11/64
Drill bit size range0.1500 - 0.2000
Drill point angle degrees142
Drill point length0.0270
Flute by diameter ratio5xD
Flute length in1-1/2
Flute typeSpiral
Iso 90012015 Certified
Maximum drilling depth1.2000
Number of flutes2
Overall length3.2300
Primary workpiece materialTemp Alloy
Shank diameter in3/16
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6537 K
Tool performanceHigh Performance
