0.2008" Solid Carbide Drill Bit, ALtima; Titanium Nitride, 142° point - M.A. Ford. 2XDCR2008A
MFR# 2XDCR2008ASeries 2XDCR
$119.00List $145.46
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

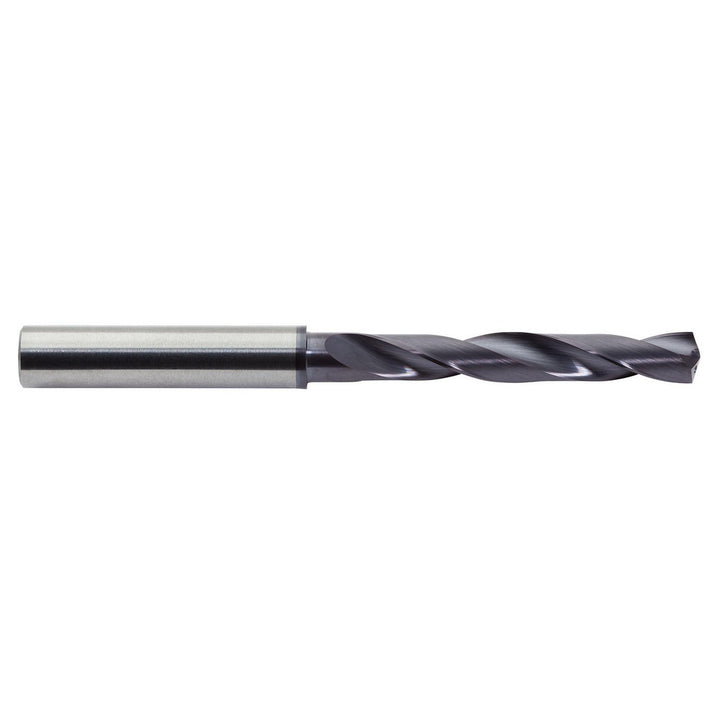

The M.A. Ford. 2XDCR2008A is a 0.2008" Solid Carbide drill bit with a ALtima; Titanium Nitride finish, 142° point. Suited for temp alloy. Series 2XDCR.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.012 mm
Drill bit finish coatingALtima; Titanium Nitride
Drill bit materialSolid Carbide
Drill bit size0.2008
Drill bit size range0.2000 - 0.2500
Drill point angle degrees142
Drill point length (mm)0.79
Flute by diameter ratio5xD
Flute length1.5748
Flute typeSpiral
Iso 90012015 Certified
Maximum drilling depth (mm)32.00
Number of flutes2
Overall length3.2283
Primary workpiece materialTemp Alloy
Shank diameter0.2362
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6537 K
Tool performanceHigh Performance
