M.A. Ford.

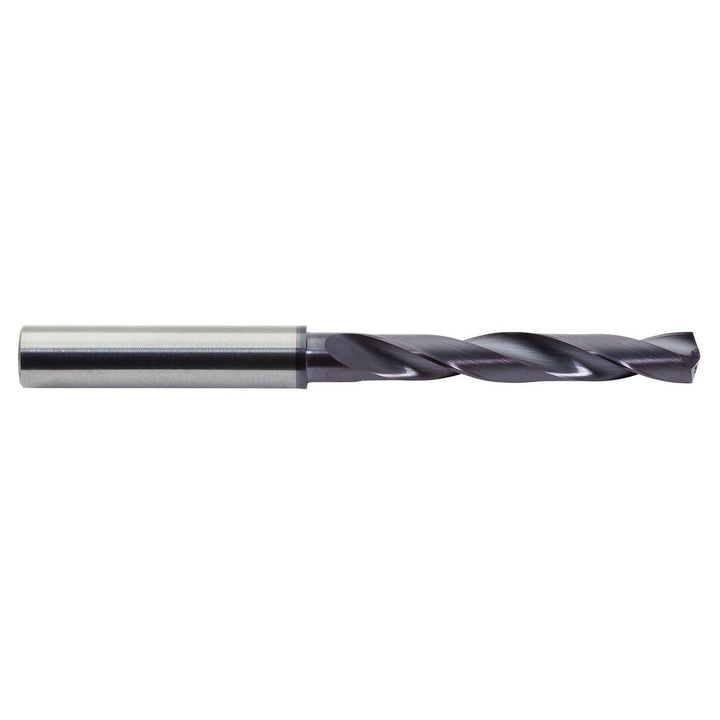

#2 Solid Carbide Drill Bit, ALtima, 142° point - M.A. Ford. 2XDCR2210A
MFR# 2XDCR2210ASeries 2XDCR
$119.00List $145.46
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingALtima
Description
The M.A. Ford. 2XDCR2210A is a #2 Solid Carbide drill bit with a ALtima finish, 142° point. Suited for temp alloy. Series 2XDCR.
Specifications
Coating finishALtima
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00000 to -0.00047 in
Drill bit materialSolid Carbide
Drill bit size0.2210
Drill bit size range0.2000 - 0.2500
Drill bit size wire#2
Drill point angle degrees142
Drill point length0.0340
Flute by diameter ratio5xD
Flute length1.5800
Flute typeSpiral
Iso 90012015 Certified
Maximum drilling depth1.2600
Number of flutes2
Overall length3.2300
Primary workpiece materialTemp Alloy
Shank diameter in15/64
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6537 K
Tool performanceHigh Performance
