3/8" Solid Carbide Drill Bit, AlTiN, 142° point - M.A. Ford. 2XDCR3750A

M.A. Ford.

3/8" Solid Carbide Drill Bit, AlTiN, 142° point - M.A. Ford. 2XDCR3750A

MFR# 2XDCR3750ASeries 2XDCR

$218.51List $267.46 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/8
Flutes2
CoatingAlTiN

Description

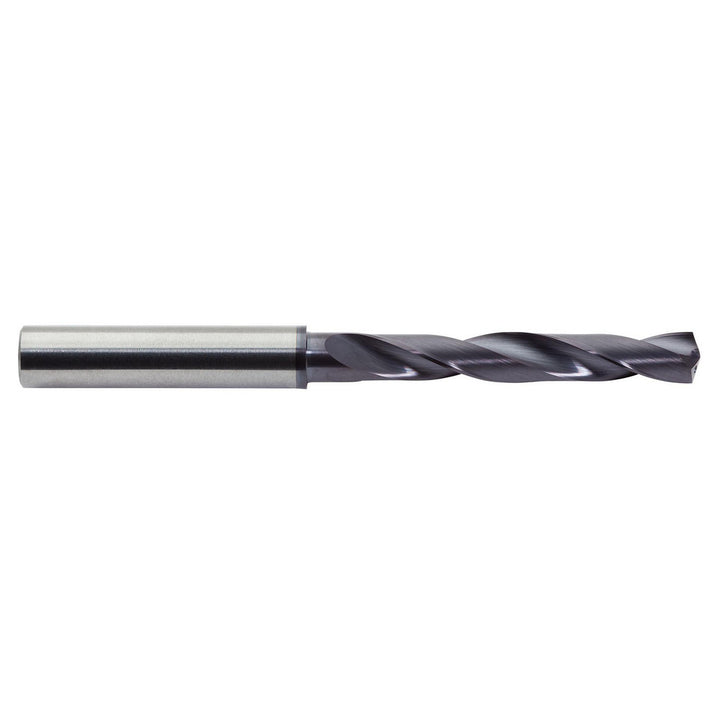

The M.A. Ford. 2XDCR3750A is a 3/8" Solid Carbide drill bit with a AlTiN finish, 142° point. Suited for steel, stainless steel, high-temp alloy. Series 2XDCR.

Specifications

Coating finishAlTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00000 to -0.00059 in
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in3/8
Drill bit size range0.3500 - 0.4000
Drill point angle degrees142
Drill point length0.0580
Flute by diameter ratio5xD
Flute length2.1700
Flute typeRegular Spiral
Iso 90012015 Certified
Maximum drilling depth1.7400
Number of flutes2
Overall length4.0600
Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy
Shank diameter in25/64
Shank typeStraight
Spiral typeRegular
StandardsDIN 6537 K
Tool performanceHigh Performance
