M.A. Ford.

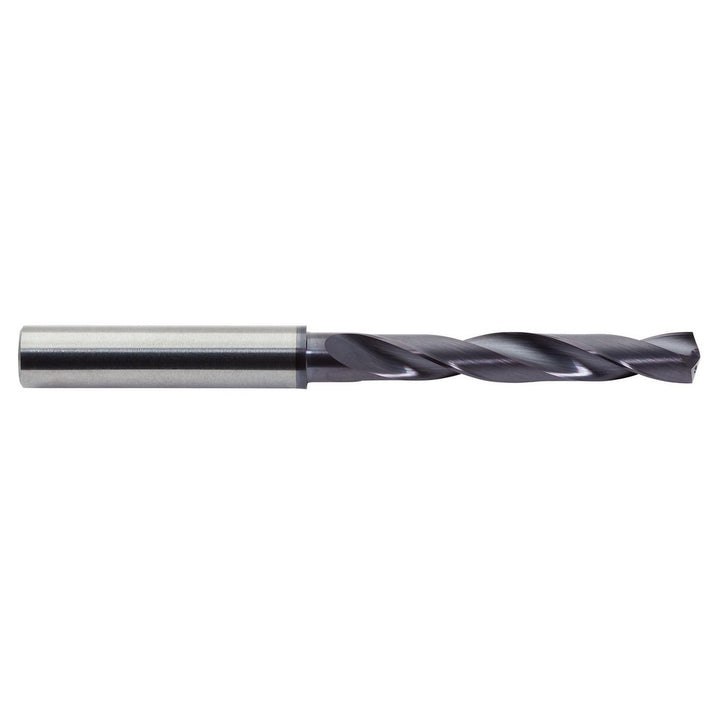

0.4016" Solid Carbide Drill Bit, AlTiN, 142° point - M.A. Ford. 2XDCR4016A
MFR# 2XDCR4016ASeries 2XDCR
$312.04List $361.79
Save 13%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingAlTiN
Description
The M.A. Ford. 2XDCR4016A is a 0.4016" Solid Carbide drill bit with a AlTiN finish, 142° point. Suited for steel, stainless steel, high-temp alloy. Series 2XDCR.
Specifications
Coating finishAlTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.4016
Drill bit size range0.4000 - 0.5000
Drill point angle degrees142
Drill point length (mm)1.58
Flute by diameter ratio5xD
Flute length2.3622
Flute typeRegular Spiral
Iso 90012015 Certified
Maximum drilling depth (mm)48.00
Number of flutes2
Overall length4.7244
Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy
Shank diameter0.4724
Shank typeStraight
Spiral typeRegular
StandardsDIN 6537 K
Tool performanceHigh Performance
