27/64" Solid Carbide Drill Bit, AlTiN, 142° point - M.A. Ford. 2XDCR4219A

M.A. Ford.

27/64" Solid Carbide Drill Bit, AlTiN, 142° point - M.A. Ford. 2XDCR4219A

MFR# 2XDCR4219ASeries 2XDCR

$268.70List $328.90 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size27/64
Flutes2
CoatingAlTiN

Description

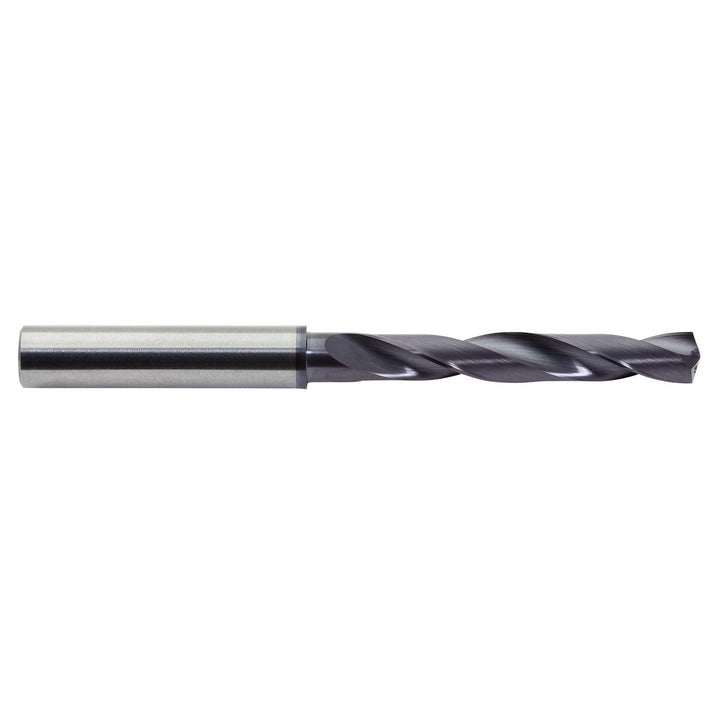

The M.A. Ford. 2XDCR4219A is a 27/64" Solid Carbide drill bit with a AlTiN finish, 142° point. Suited for steel, stainless steel, high-temp alloy. Series 2XDCR.

Specifications

Coating finishAlTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00000 to -0.00071 in
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in27/64
Drill bit size range0.4000 - 0.5000
Drill point angle degrees142
Drill point length0.0650
Flute by diameter ratio5xD
Flute length2.3600
Flute typeRegular Spiral
Iso 90012015 Certified
Maximum drilling depth1.8900
Number of flutes2
Overall length4.7200
Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy
Shank diameter in15/32
Shank typeStraight
Spiral typeRegular
StandardsDIN 6537 K
Tool performanceHigh Performance
