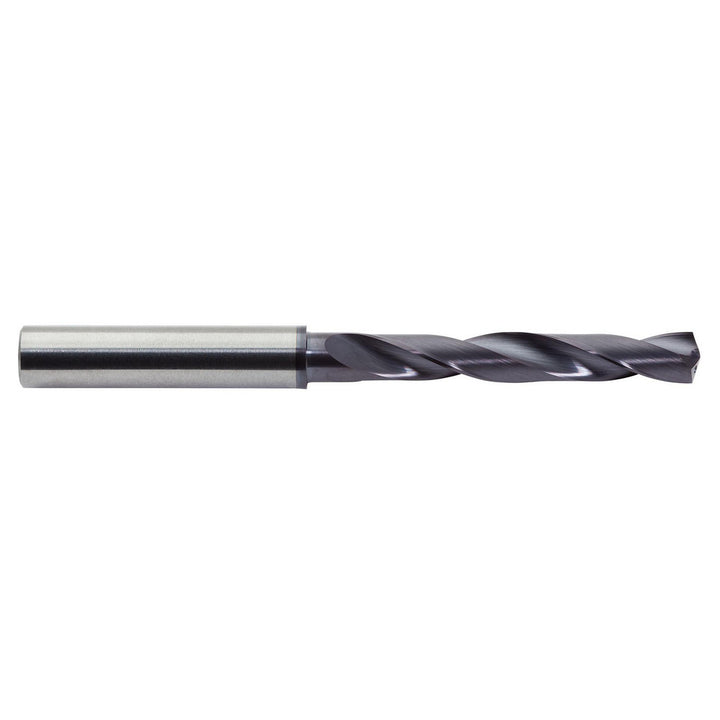

31/64" Solid Carbide Drill Bit, AlTiN, 142° point - M.A. Ford. 2XDCR4844A
MFR# 2XDCR4844ASeries 2XDCR
$397.78List $461.20
Save 13%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size31/64
Flutes2
CoatingAlTiN
Description
The M.A. Ford. 2XDCR4844A is a 31/64" Solid Carbide drill bit with a AlTiN finish, 142° point. Suited for steel, stainless steel, high-temp alloy. 4-3/4 overall length. Series 2XDCR.
Specifications
Coating finishAlTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00000 to -0.00071 in
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in31/64
Drill bit size range0.4000 - 0.5000
Drill point angle degrees142
Drill point length0.0750
Flute by diameter ratio5xD
Flute length2.8300
Flute typeRegular Spiral
Iso 90012015 Certified
Maximum drilling depth2.6250
Number of flutes2
Overall length in4-3/4
Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy
Shank diameter in1/2
Shank typeStraight
Spiral typeRegular
StandardsDIN 6537 K
Tool performanceHigh Performance
