M.A. Ford.

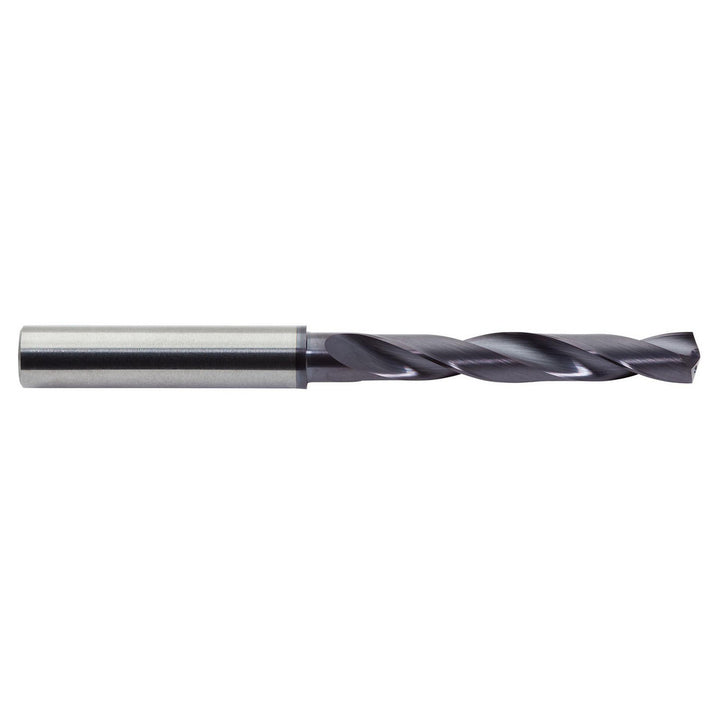

1/2" Solid Carbide Drill Bit, ALtima, 142° point - M.A. Ford. 2XDCR5000A
MFR# 2XDCR5000ASeries 2XDCR
$342.54List $419.27
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/2
Flutes2
Description
The M.A. Ford. 2XDCR5000A is a 1/2" Solid Carbide drill bit with a ALtima finish, 142° point. Suited for temp alloy. Series 2XDCR.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00000 to -0.00071 in
Drill bit finish coatingALtima
Drill bit materialSolid Carbide
Drill bit size in1/2
Drill bit size range0.5000 - 0.6500
Drill point angle degrees142
Drill point length0.0770
Flute by diameter ratio5xD
Flute length2.8300
Flute typeSpiral
Iso 90012015 Certified
Maximum drilling depth2.2600
Number of flutes2
Overall length4.7500
Point typeStandard
Primary workpiece materialTemp Alloy
Shank diameter in1/2
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6537 K
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
