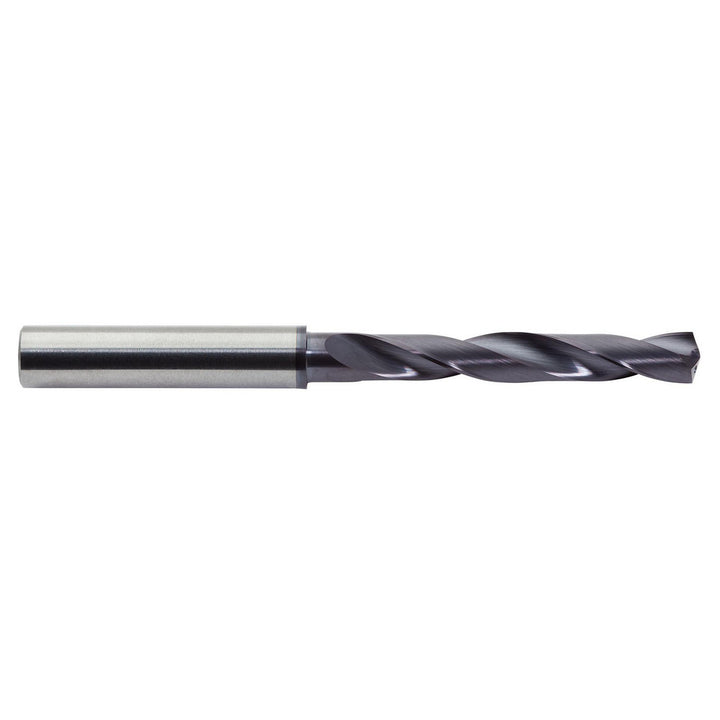

0.5118" Solid Carbide Drill Bit, AlTiN, 142° point - M.A. Ford. 2XDCR5118A

M.A. Ford.

0.5118" Solid Carbide Drill Bit, AlTiN, 142° point - M.A. Ford. 2XDCR5118A

MFR# 2XDCR5118ASeries 2XDCR

$342.54List $419.27 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingAlTiN

Description

The M.A. Ford. 2XDCR5118A is a 0.5118" Solid Carbide drill bit with a AlTiN finish, 142° point. Suited for steel, stainless steel, high-temp alloy. Series 2XDCR.

Specifications

Coating finishAlTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.5118
Drill bit size range0.5000 - 0.6500
Drill point angle degrees142
Drill point length (mm)2.01
Flute by diameter ratio5xD
Flute length2.8346
Flute typeRegular Spiral
Iso 90012015 Certified
Maximum drilling depth (mm)58.00
Number of flutes2
Overall length4.9606
Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy
Shank diameter0.5512
Shank typeStraight
Spiral typeRegular
StandardsDIN 6537 K
Tool performanceHigh Performance
