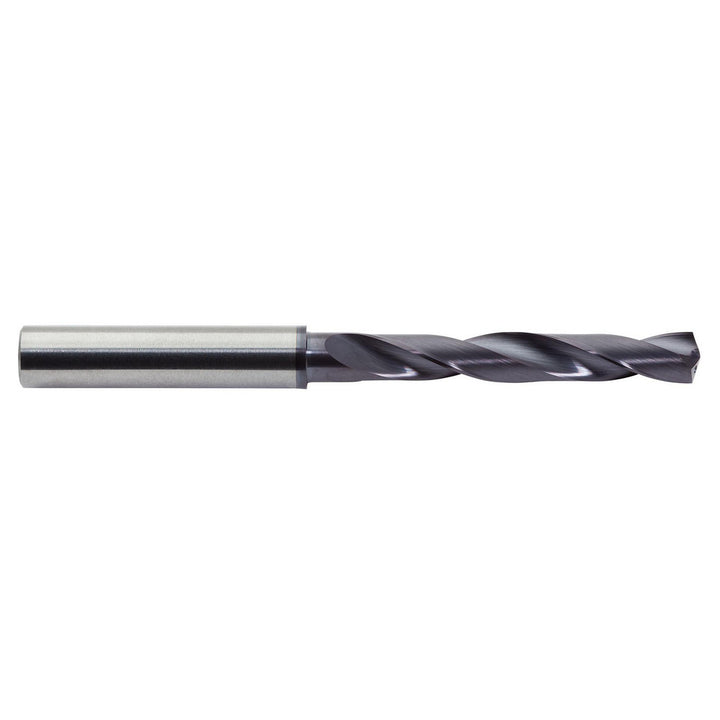

17/32" Solid Carbide Drill Bit, AlTiN, 142° point - M.A. Ford. 2XDCR5312A

M.A. Ford.

17/32" Solid Carbide Drill Bit, AlTiN, 142° point - M.A. Ford. 2XDCR5312A

MFR# 2XDCR5312ASeries 2XDCR

$404.56List $495.18 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size17/32
Flutes2
CoatingAlTiN

Description

The M.A. Ford. 2XDCR5312A is a 17/32" Solid Carbide drill bit with a AlTiN finish, 142° point. Suited for steel, stainless steel, high-temp alloy. Series 2XDCR.

Specifications

Coating finishAlTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00000 to -0.00071 in
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in17/32
Drill bit size range0.5000 - 0.6500
Drill point angle degrees142
Drill point length0.0820
Flute by diameter ratio5xD
Flute length3.0300
Flute typeRegular Spiral
Iso 90012015 Certified
Maximum drilling depth2.4200
Number of flutes2
Overall length5.2800
Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy
Shank diameter in35/64
Shank typeStraight
Spiral typeRegular
StandardsDIN 6537 K
Tool performanceHigh Performance
