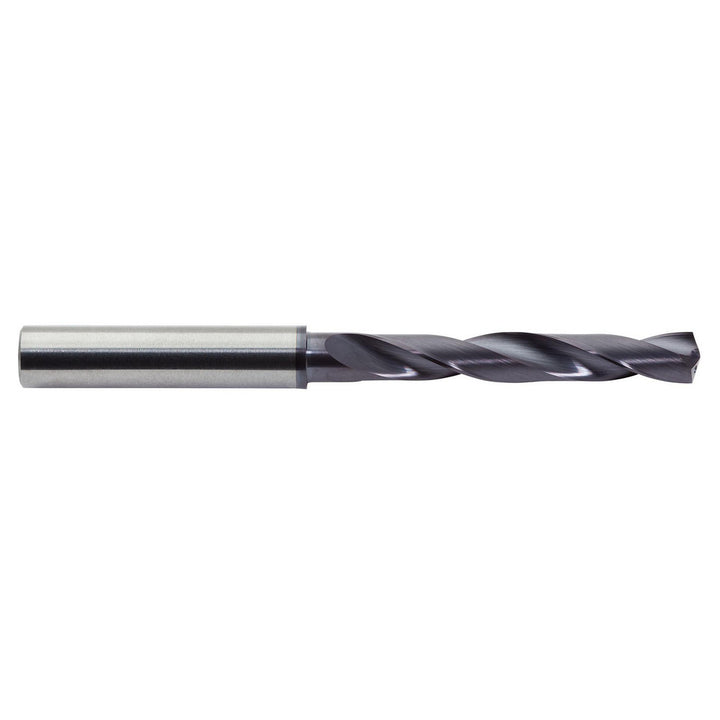

0.5512" Solid Carbide Drill Bit, ALtima; Titanium Nitride, 142° point - M.A. Ford. 2XDCR5512A

M.A. Ford.

0.5512" Solid Carbide Drill Bit, ALtima; Titanium Nitride, 142° point - M.A. Ford. 2XDCR5512A

MFR# 2XDCR5512ASeries 2XDCR

$404.56List $495.18 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The M.A. Ford. 2XDCR5512A is a 0.5512" Solid Carbide drill bit with a ALtima; Titanium Nitride finish, 142° point. Suited for temp alloy. Series 2XDCR.

Specifications

Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit finish coatingALtima; Titanium Nitride
Drill bit materialSolid Carbide
Drill bit size0.5512
Drill bit size range0.5000 - 0.6500
Drill point angle degrees142
Drill point length (mm)2.17
Flute by diameter ratio5xD
Flute length3.0315
Flute typeSpiral
Iso 90012015 Certified
Maximum drilling depth (mm)62.00
Number of flutes2
Overall length5.2756
Primary workpiece materialTemp Alloy
Shank diameter0.5512
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6537 K
Tool performanceHigh Performance
