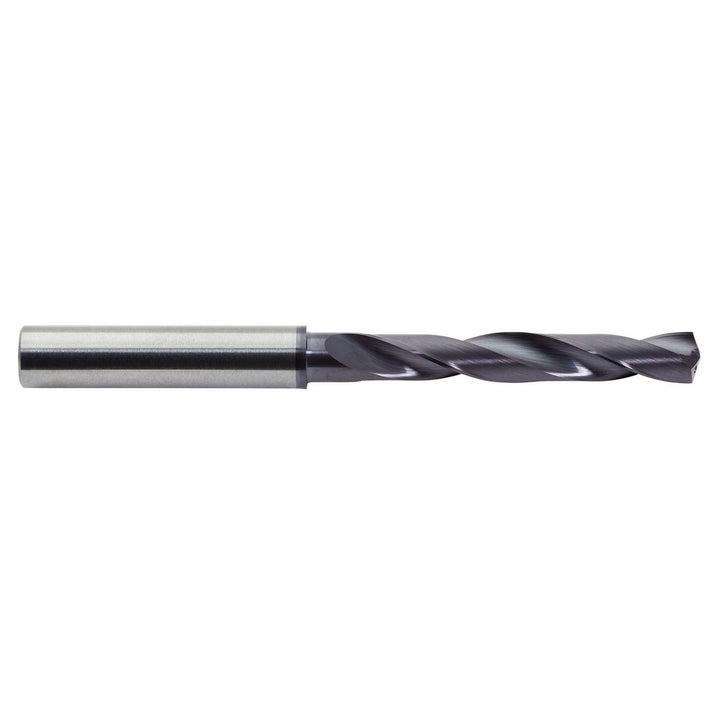

5/8" Solid Carbide Drill Bit, ALtima; Titanium Nitride, 142° point - M.A. Ford. 2XDCR6250A

M.A. Ford.

5/8" Solid Carbide Drill Bit, ALtima; Titanium Nitride, 142° point - M.A. Ford. 2XDCR6250A

MFR# 2XDCR6250ASeries 2XDCR

$340.11List $401.30 Save 15%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size5/8
Flutes2

Description

The M.A. Ford. 2XDCR6250A is a 5/8" Solid Carbide drill bit with a ALtima; Titanium Nitride finish, 142° point. Suited for temp alloy. 5-3/4 overall length. Series 2XDCR.

Specifications

Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00000 to -0.00071 in
Drill bit finish coatingALtima; Titanium Nitride
Drill bit materialSolid Carbide
Drill bit size in5/8
Drill bit size range0.5000 - 0.6500
Drill point angle degrees142
Drill point length0.0970
Flute by diameter ratio5xD
Flute length3.2300
Flute typeSpiral
Iso 90012015 Certified
Maximum drilling depth2.5800
Number of flutes2
Overall length in5-3/4
Primary workpiece materialTemp Alloy
Shank diameter in5/8
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6537 K
Tool performanceHigh Performance
